KC26A9 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY 6POS 350MA 125V
| Part | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Number of Decks [custom] | Number of Positions | Circuit per Deck | Index Stops | Current Rating (Amps) | Contact Finish | Contact Material | Voltage Rating - AC | Depth Behind Panel [z] | Angle of Throw | Mounting Type | Contact Timing | Termination Style | Number of Poles per Deck | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

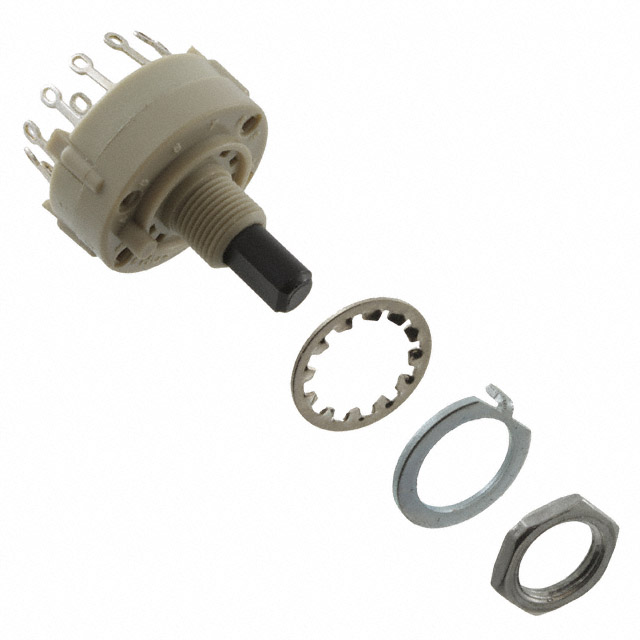

 E-Switch | 9.8 mm | 9.5 mm | 1 | 6 | DP6T | Fixed | 350 mA | Silver | Copper Alloy | 125 V | 18.5 mm | 30 ° | Panel Mount | Non-Shorting (BBM) | Solder Lug | 2 | Flatted (6.35mm Dia) |
 E-Switch | 9.8 mm | 9.5 mm | 1 | 6 | DP6T | Fixed | 350 mA | Gold | Copper Alloy | 125 V | 18.5 mm | 30 ° | Panel Mount | Non-Shorting (BBM) | Solder Lug | 2 | Flatted (6.35mm Dia) |

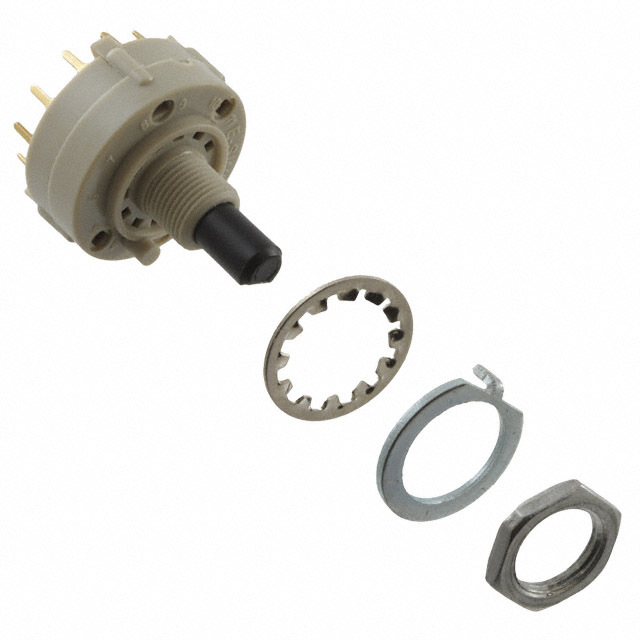

E-Switch | 9.8 mm | 9.5 mm | 1 | 6 | DP6T | Fixed | 350 mA | Gold | Copper Alloy | 125 V | 14.2 mm | 30 ° | Panel Mount Through Hole | Shorting (MBB) | PC Pin | 2 | Flatted (6.35mm Dia) |
E-Switch | 9.8 mm | 9.5 mm | 1 | 6 | DP6T | Fixed | 350 mA | Silver | Copper Alloy | 125 V | 14.2 mm | 30 ° | Panel Mount Through Hole | Non-Shorting (BBM) | PC Pin | 2 | Flatted (6.35mm Dia) |
 E-Switch | 9.8 mm | 9.5 mm | 1 | 6 | DP6T | Fixed | 350 mA | Gold | Copper Alloy | 125 V | 14.2 mm | 30 ° | Panel Mount Through Hole | Non-Shorting (BBM) | PC Pin | 2 | Flatted (6.35mm Dia) |
