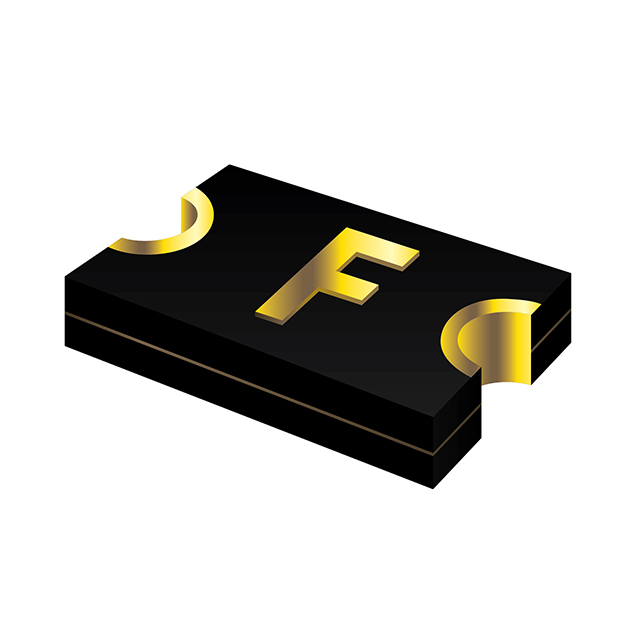

MF-NSHT Series
Manufacturer: Bourns Inc.
Beta
⌘K
PTC RESET FUSE 30V 160MA 1206
| Part | Current - Trip (It) | Package / Case | Voltage - Max [Max] | Time to Trip | Resistance - Post Trip (R1) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Max [Max] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Thickness (Max) [Max] | Thickness (Max) [Max] | Type | Current - Hold (Ih) (Max) [Max] | Resistance - Initial (Ri) (Min) [Min] | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 800 mA | 1206 (3216 Metric) Concave | 30 V | 100 ms | 6 Ohms | 125 °C | -40 C | 20 A | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.85 mm | 0.033 in | Polymeric | 160 mA | 700 mOhms | AEC-Q200 | Automotive |
