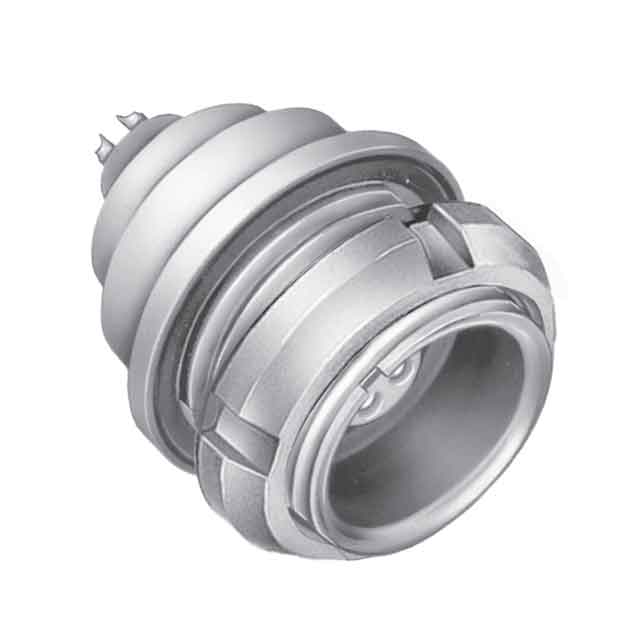

EEG.2K Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 26POS GOLD SLDR

Part	Orientation [custom]	Ingress Protection	Insert Material	Shell Material	Shell Size - Insert	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Color	Primary Material	Connector Type	Mounting Feature	Number of Positions	Contact Material	Shell Finish	Shielding	Mounting Type	Termination	Fastening Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Center Contact Plating	Mating Cycles	Body Finish	Body Material	Dielectric Material	Cable Group	Housing Color	Contact Termination	Connector Style	Shield Termination	Impedance	Number of Ports
LEMO EEG.2K.326.CLN	G	IP66 IP68	Polyetheretherketone (PEEK)	Brass	326	UL94 V-0	200 °C	-55 C	2 A	Silver	Metal	Receptacle Female Sockets	Bulkhead - Front Side Nut	26	Bronze	Chrome	Shielded	Panel Mount Through Hole	Solder	Push-Pull	Gold	1.5 Ám	59 Áin
LEMO EEG.2K.308.CLL	G	IP66 IP68	Polyetheretherketone (PEEK)	Brass	308	UL94 V-0	200 °C	-55 C	10 A	Silver	Metal	Receptacle Female Sockets	Bulkhead - Front Side Nut	8	Bronze	Chrome	Shielded	Panel Mount		Push-Pull	Gold	1.5 Ám	59 Áin
LEMO EEG.2K.312.CYM	G	IP66 IP68	Polyetheretherketone (PEEK)	Brass	312	UL94 V-0	200 °C	-55 C	7 A	Silver	Metal	Receptacle Female Sockets	Bulkhead - Front Side Nut	12	Bronze	Chrome	Shielded	Panel Mount	Crimp	Push-Pull	Gold	1.5 Ám	59 Áin
LEMO EEG.2K.312.CLV	G	IP66 IP68	Polyetheretherketone (PEEK)	Brass	312	UL94 V-0	200 °C	-55 C	6 A	Silver	Metal	Receptacle Female Sockets	Bulkhead - Front Side Nut	12	Bronze	Chrome	Shielded	Panel Mount Right Angle Through Hole	Solder	Push-Pull	Gold	1.5 Ám	59 Áin
LEMO EEG.2K.319.CYM	G	IP66 IP68	Polyetheretherketone (PEEK)	Brass	319	UL94 V-0	200 °C	-55 C	5 A	Silver	Metal	Receptacle Female Sockets	Bulkhead - Front Side Nut	19	Bronze	Chrome	Shielded	Panel Mount	Crimp	Push-Pull	Gold	1.5 Ám	59 Áin
LEMO EEG.2K.319.CLL	G	IP66 IP68	Polyetheretherketone (PEEK)	Brass	319	UL94 V-0	200 °C	-55 C	5 A	Silver	Metal	Receptacle Female Sockets	Bulkhead - Front Side Nut	19	Bronze	Chrome	Shielded	Panel Mount		Push-Pull	Gold	1.5 Ám	59 Áin
LEMO EEG.2K.304.CYM	G	IP66 IP68	Polyetheretherketone (PEEK)	Brass	304	UL94 V-0	200 °C	-55 C	15 A	Silver	Metal	Receptacle Female Sockets	Bulkhead - Front Side Nut	4	Bronze	Chrome	Shielded	Panel Mount	Crimp	Push-Pull	Gold	1.5 Ám	59 Áin
LEMO EEG.2K.302.CYM	G	IP66 IP68	Polyetheretherketone (PEEK)	Brass	302	UL94 V-0	200 °C	-55 C	25 A	Silver	Metal	Receptacle Female Sockets	Bulkhead - Front Side Nut	2	Bronze	Chrome	Shielded	Panel Mount	Crimp	Push-Pull	Gold	1.5 Ám	59 Áin
LEMO EEG.2K.243.CLL2		IP68 - Dust Tight Waterproof					200 °C	-55 C				Receptacle Female Socket						Free Hanging (In-Line)		Push-Pull				Gold	5000	Chrome	Brass	Polyetheretherketone (PEEK)	196A RG-178B	Silver	Solder	Coaxial	Crimp	50 Ohms	1
LEMO EEG.2K.310.CLL	G	IP66 IP68	Polyetheretherketone (PEEK)	Brass	310	UL94 V-0	200 °C	-55 C	8 A	Silver	Metal	Receptacle Female Sockets	Bulkhead - Front Side Nut	10	Bronze	Chrome	Shielded	Panel Mount		Push-Pull	Gold	1.5 Ám	59 Áin
