305-086 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 86POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Positions/Bay/Row | Pitch | Pitch | Contact Material | Contact Finish | Color | Mounting Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Read Out | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Gender | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

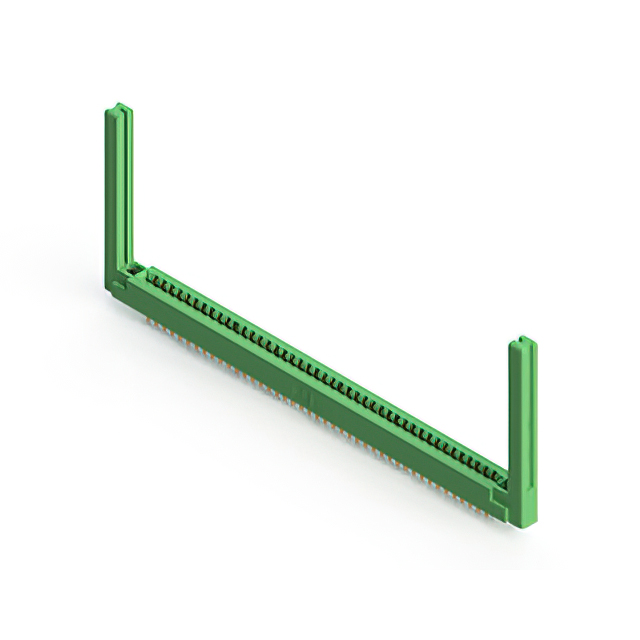

 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Board Edge Straddle Mount | Card Extender | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Solder | Female | Non Specified - Dual Edge |

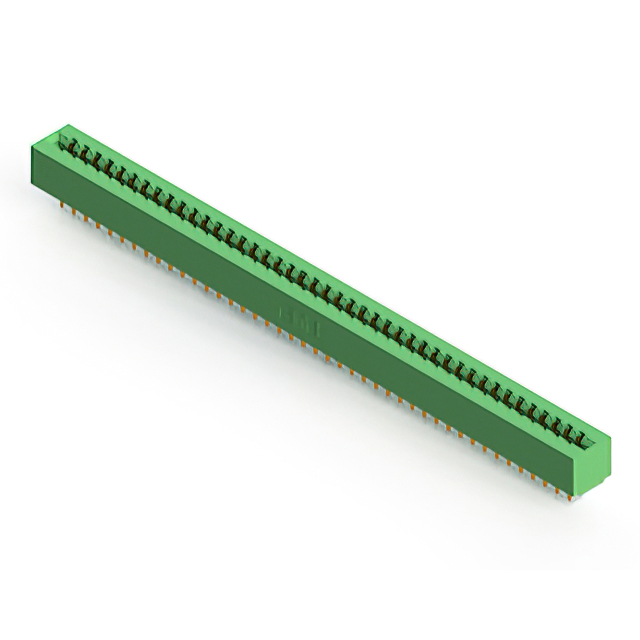

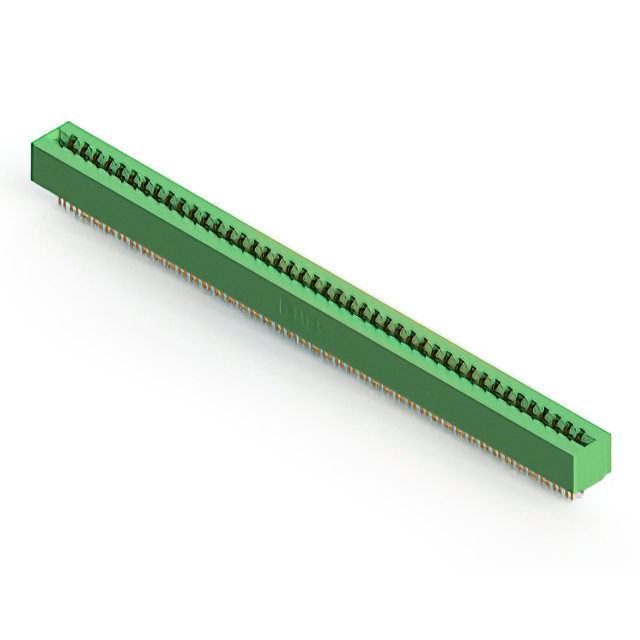

 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | Female | Non Specified - Dual Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Panel Mount | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | Female | Non Specified - Dual Edge | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Panel Mount | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Flush Mount M3 Threaded Insert Top Opening | Solder Eyelet(s) | Female | Non Specified - Dual Edge | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Panel Mount Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Female | Non Specified - Dual Edge | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Panel Mount Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Female | Non Specified - Dual Edge | |

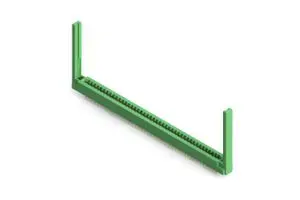

 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Board Edge Straddle Mount | Card Extender Card Guides | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Female | Non Specified - Dual Edge | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Panel Mount Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Female | Non Specified - Dual Edge | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Panel Mount | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | Female | Non Specified - Dual Edge | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 86 | 2 | 0.25 Ám | 10 Áin | Semi Bellows | 43 | 3.96 mm | 0.156 in | Copper Alloy | Gold | Green | Panel Mount Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Female | Non Specified - Dual Edge |
