627-24W Series
Manufacturer: EDAC Inc.
Beta
⌘K

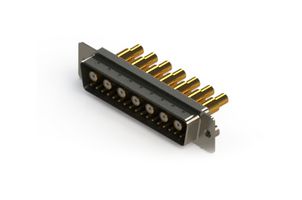

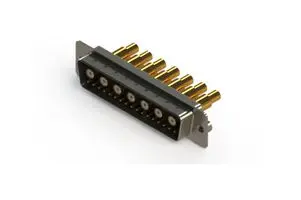

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DD-24W7, PLUG, 24 CONTACTS, 17 SIGNAL, 7 POWER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Voltage Rating | Dielectric Material | Shell Material, Finish | Current Rating (Amps) | Termination | Flange Feature | Contact Finish | Number of Rows [custom] | Contact Type | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Connector Type | Features | Contact Finish Thickness | Number of Positions [custom] | Number of Positions [custom] | Flange Feature [custom] | Flange Feature [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | Nickel Plated Steel | 5 A 30 A | Solder | Board Side (M3) | Gold | 2 | Signal and Power | 7 | 17 | 30 Áin | 0.76 Ám | Combo D-Sub | Panel Mount Through Hole | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Grounding Indents Shielded | ||||||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | Nickel Plated Steel | 5 A 30 A | Solder | Board Side (4-40) | Gold | 2 | Signal and Power | 7 | 17 | Combo D-Sub | Through Hole | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Board Lock Grounding Indents Shielded | Flash | |||||||
EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | 5 A 30 A | Solder | Board Side (M3) | Gold | 2 | Signal and Power | 7 | 17 | 30 Áin | 0.76 Ám | Combo D-Sub | Panel Mount Through Hole | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Grounding Indents Shielded | |||||||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | Nickel Plated Steel | Board Side (4-40) | Gold | 2 | Coax Signal | 30 Áin | 0.76 Ám | Combo D-Sub | Free Hanging (In-Line) | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Grounding Indents Shielded | 7 | 17 | ||||||||
EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | Nickel Plated Steel | 5 A 30 A | Solder | Board Side (M3) | Gold | 2 | Signal and Power | 7 | 17 | Combo D-Sub | Through Hole | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Board Lock Grounding Indents Shielded | Flash | |||||||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | Nickel Plated Steel | 5 A 30 A | Solder | Gold | 2 | Signal and Power | 7 | 17 | Combo D-Sub | Panel Mount Through Hole | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Grounding Indents Shielded | Flash | 4-40 | 4-40 | ||||||
EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | Solder | Board Side (4-40) | Gold | 2 | Signal and Power | 7 | 17 | 30 Áin | 0.76 Ám | Combo D-Sub | Through Hole | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Board Lock Grounding Indents Shielded | 20A 5A | |||||||
EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | Nickel Plated Steel | 5 A 30 A | Solder | Board Side (4-40) | Gold | 2 | Signal and Power | 7 | 17 | 30 Áin | 0.76 Ám | Combo D-Sub | Panel Mount Through Hole | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Grounding Indents Shielded | ||||||
EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | Nickel Plated Steel | 5 A 30 A | Solder | 4-40 | Gold | 2 | Signal and Power | 7 | 17 | Combo D-Sub | Panel Mount Through Hole | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Board Lock Grounding Indents Shielded | Flash | |||||||
EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Polyester Thermoplastic | Board Side (4-40) | Gold | 2 | Coax Signal | 30 Áin | 0.76 Ám | Combo D-Sub | Free Hanging (In-Line) | 5 | D DD | 24W7 | UL94 V-0 | Plug Male Pins | Grounding Indents Shielded | 7 | 17 |
