OSTHG06 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

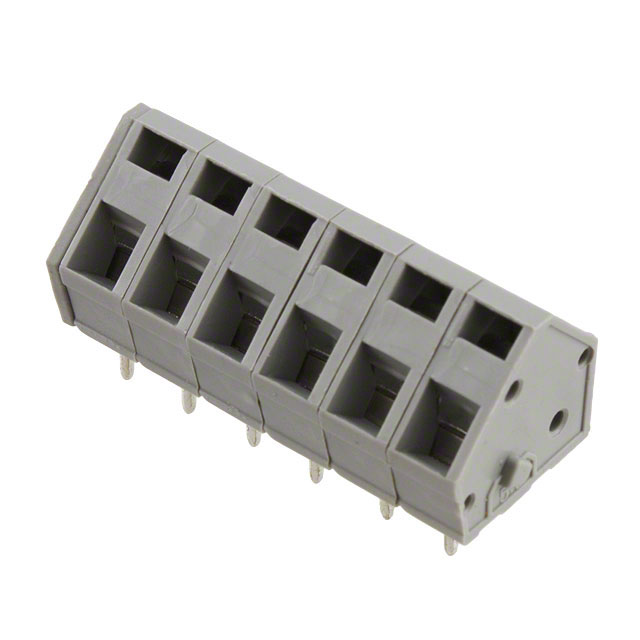

TERM BLOCK 6POS 5MM PCB
| Part | Clamp Material - Plating [custom] | Contact Material - Plating | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Number of Levels | Wire Termination | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Color | Pitch | Pitch | Features | Mating Orientation | Current | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Stainless Steel | Brass | Thermoplastic | -30 ░C | 105 ░C | 300 VDC | 1 | Leg Spring Push-In Spring | 6 | 12 AWG | 28 AWG | Gray | 0.197 in | 5 mm | Interlocking (Side) | Angled | 15 A | Through Hole |
 On Shore Technology Inc. | Stainless Steel | Brass | Thermoplastic | -30 ░C | 105 ░C | 300 VDC | 1 | Leg Spring Push-In Spring | 6 | 12 AWG | 28 AWG | Gray | 0.2 in | 5.08 mm | Interlocking (Side) | Angled | 15 A | Through Hole |
