PS9117 Series

Catalog

OPTOISO 3.75KV OPN COLLECTOR 5SO

Part	Voltage - Isolation	Supplier Device Package	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Package / Case	Package / Case	Number of Channels [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output / Channel	Common Mode Transient Immunity (Min) [Min]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Current - DC Forward (If) (Max)	Output Type	Data Rate	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Input Type

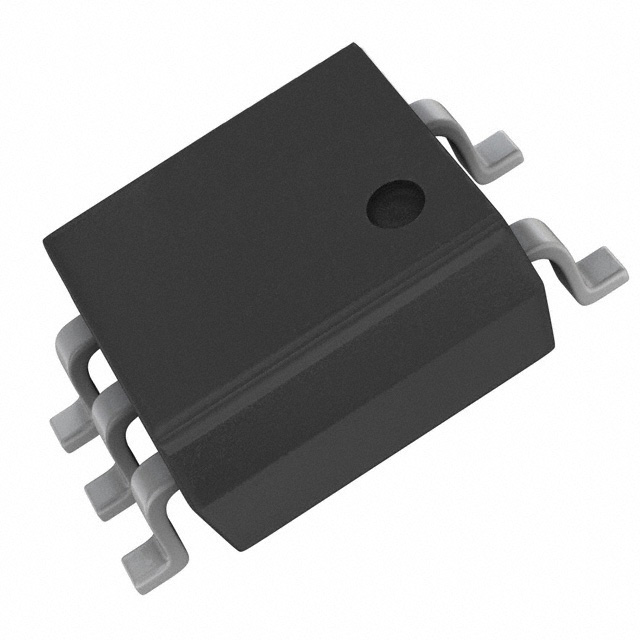

Renesas Electronics Corporation PS9117A-V-F3-AX	3750 Vrms	5-SO	75 ns	75 ns	6-SOIC	0.173 " 4.4 mm Width 5 Leads	1	5.5 V	4.5 V	5 ns	20 ns	25 mA	15 kV/µs	1	0	30 mA	Open Collector	10 Mbps	1.65 V	85 °C	-40 C	Surface Mount	DC
Renesas Electronics Corporation PS9117A-V-F3-AX	3750 Vrms	5-SO	75 ns	75 ns	6-SOIC	0.173 " 4.4 mm Width 5 Leads	1	5.5 V	4.5 V	5 ns	20 ns	25 mA	15 kV/µs	1	0	30 mA	Open Collector	10 Mbps	1.65 V	85 °C	-40 C	Surface Mount	DC
