APM-MAX Series
Manufacturer: TRUMETER
Beta
⌘K

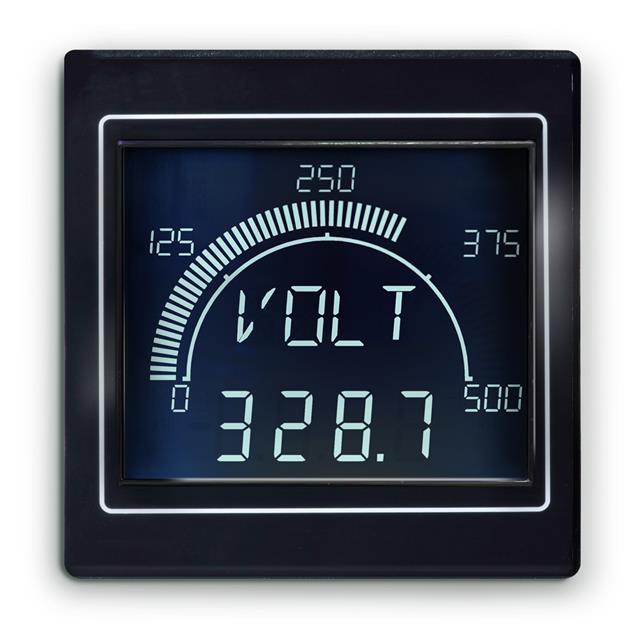

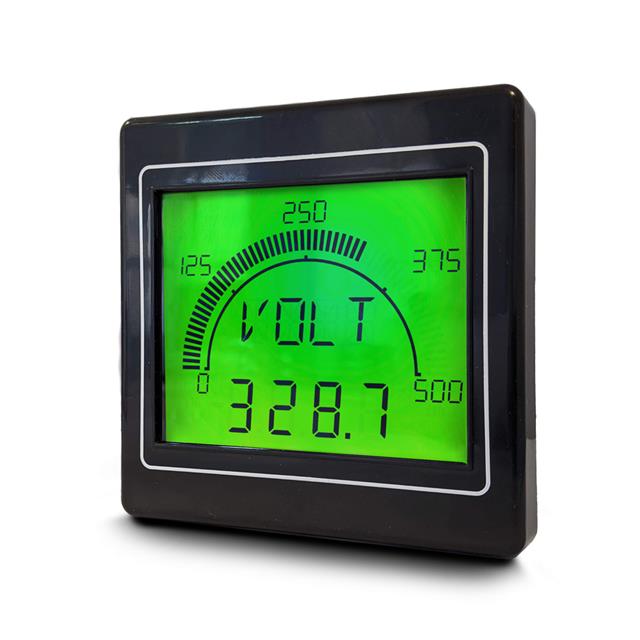

PANEL METER, PROCESS, CURRENT, 0 TO 10 VDC, 0 TO 5 A, 4 DIGITS AND GRAPH, NEGATIVE LCD, TCP/IP/RTU
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | Number of Characters Per Row [custom] | Measuring Type | Termination Style | Mounting Type | Ingress Protection | Type | Display Type | Measuring Range [Min] | Measuring Range [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage - Supply [Max] | Voltage - Supply [Min] | Measuring Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TRUMETER | -10 °C | 60 °C | Analog Digital (2) | 4 | Process | Screw Terminal | Panel Mount | IP65 - Dust Tight Water Resistant | Process Meter | Black Characters Quad Color Backlight | 0 Hz 0 A 0 VDC | 5 A 10 V 400 Hz | 68.07 mm | 68.07 mm | 24 V | 12 VDC | |
 TRUMETER | -10 °C | 60 °C | Analog Digital (2) | 4 | Current Frequency Voltage Wattage | Screw Terminal | Panel Mount | IP65 - Dust Tight Water Resistant | Multifunction Meter | Black Characters Quad Color Backlight | 0 A 0 Hz | 5 A 400 Hz | 68.07 mm | 68.07 mm | 240 VAC | 100 VAC | 600 VAC/DC |
 TRUMETER | -10 °C | 60 °C | Analog Digital (2) | 4 | Process | Screw Terminal | Panel Mount | IP65 - Dust Tight Water Resistant | Process Meter | Black Characters Quad Color Backlight | 0 Hz 0 A 0 VDC | 5 A 10 V 400 Hz | 68.07 mm | 68.07 mm | 24 V | 12 VDC |
