833-041 Series
Manufacturer: EDAC Inc.
Beta
⌘K

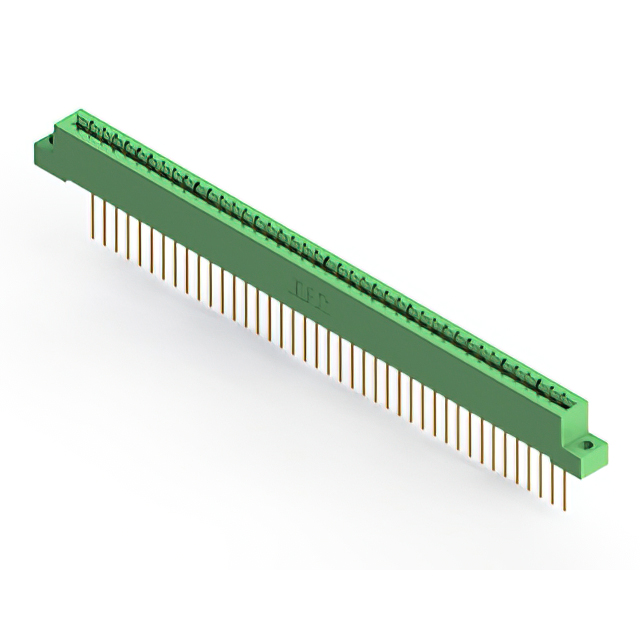

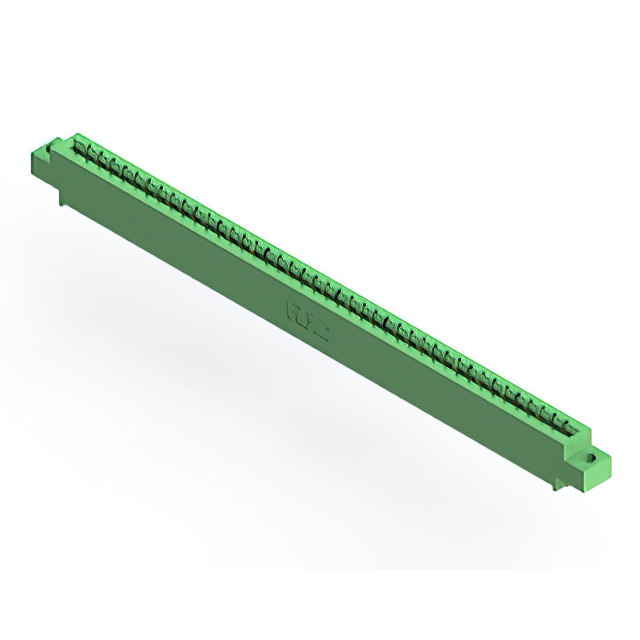

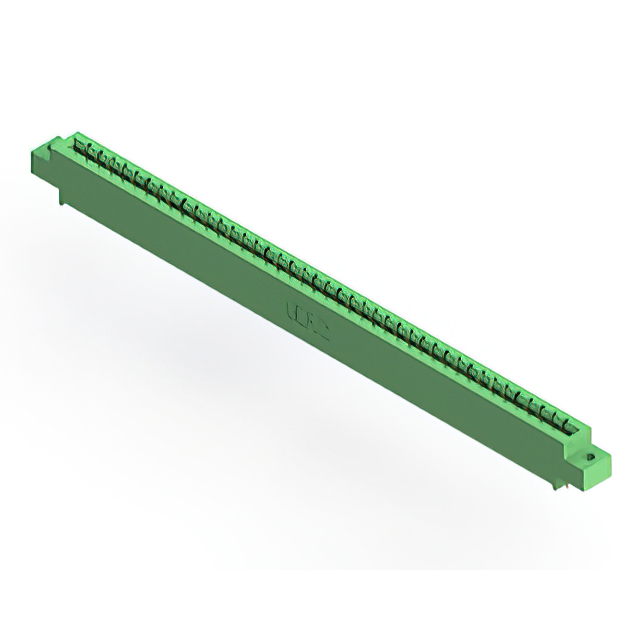

CONN EDGE SGL FMALE 41POS 0.156
| Part | Material - Insulation | Termination Rows | Card Type | Number of Positions/Bay/Row | Contact Type | Contact Material | Color | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Gender | Contact Finish | Number of Rows | Read Out | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | 0.156 " | 3.96 mm | Through Hole | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | 0.156 " | 3.96 mm | Through Hole | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | 0.128 " | 3.25 mm | Through Hole | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | Through Hole | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | Through Hole | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | 0.116 " | 2.95 mm | Through Hole | 125 °C | -40 C | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | 0.156 " | 3.96 mm | Through Hole | 125 °C | -40 C | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | 0.128 " | 3.25 mm | Through Hole | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | 0.128 " | 3.25 mm | Through Hole | 125 °C | -40 C | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 41 | Cantilever | Copper Alloy | Green | 41 | 0.116 " | 2.95 mm | Through Hole | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Female | Gold | 1 | Single | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount |
