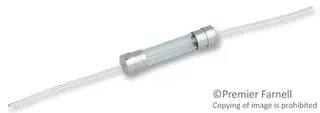

FUSE 250V SB PT 3AG Pb-FREE 1A
Description
AI
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Beta
⌘K
FUSE 250V SB PT 3AG Pb-FREE 1A
FUSE 250V SB PT 3AG Pb-FREE 1A
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Melting I²t | Response Time | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Breaking Capacity @ Rated Voltage | Fuse Type | Current Rating (Amps) | Package / Case [y] | Package / Case | Package / Case [x] | Voltage Rating - AC | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | -55 C | 125 °C | 14 | Slow Blow | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 35 A | Cartridge Glass | 1 A | 3AB 3AG | 0.25 " | 250 V | Through Hole | CE CSA PSE UL | |
LITTELFUSE | -55 C | 125 °C | 14 | Slow Blow | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 35 A | Cartridge Glass | 1 A | 3AB 3AG | 0.25 " | 250 V | Through Hole | CE CSA PSE UL | |
 LITTELFUSE | -55 C | 125 °C | 14 | Slow Blow | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 35 A | Cartridge Glass | 1 A | 3AB 3AG | 0.25 " | 250 V | Through Hole | CE CSA PSE UL |
