R1613220 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

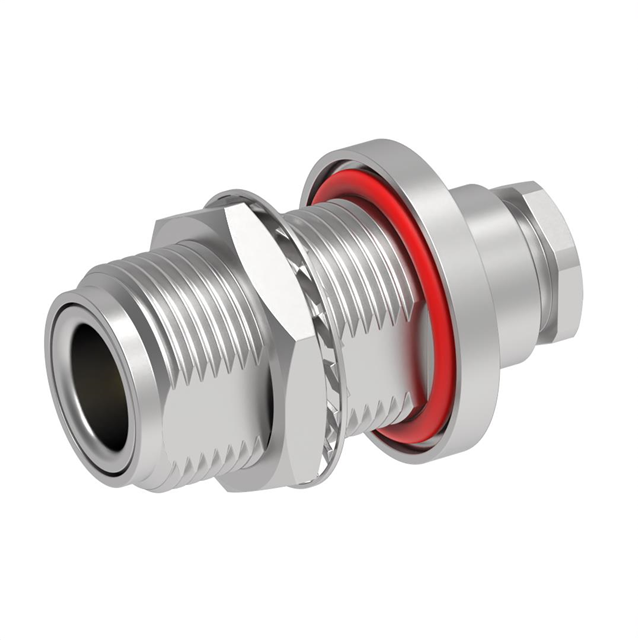

N F STR BHDP CL 2.6/50+75 C50
| Part | Voltage Rating | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Body Material | Dielectric Material | Mating Cycles | Center Contact Material | Number of Ports | Connector Style | Fastening Type | Mounting Type | Impedance | Shield Termination | Cable Group | Connector Type | Frequency - Max [Max] | Mounting Feature | Contact Termination | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

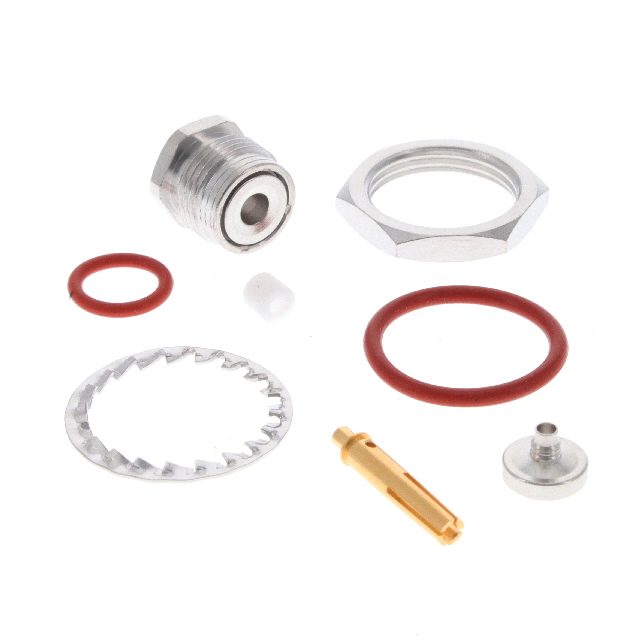

 Radiall USA, Inc. | 250 V | Gold | 155 C | -55 C | 1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Lockwasher 1 Nut 1 Spacer 2 Gaskets | Brass | Polytetrafluoroethylene (PTFE) | 500 | Beryllium Copper | 1 | N Type | Threaded | Panel Mount | 50 Ohms | Clamp | 316 RD-316 RG-174 | Female Socket Jack | 11 GHz | Bulkhead - Front Side Nut | Solder | IP67 - Dust Tight Waterproof |
