UCC28782 Series

Catalog

PROTOTYPE

Part	Supplied Contents	Contents	Secondary Attributes	Type	Function	Utilized IC / Part	Topology	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Fault Protection	Output Isolation	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Control Features	Voltage - Start Up

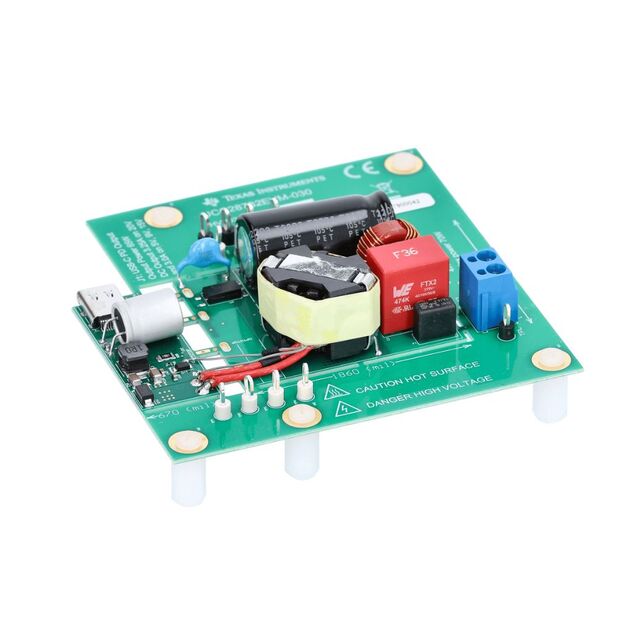

Texas Instruments UCC28782EVM-030	Board(s)	Board(s)	On-Board Test Points	Power Management	USB PD Controller (Power Delivery)	UCC28782

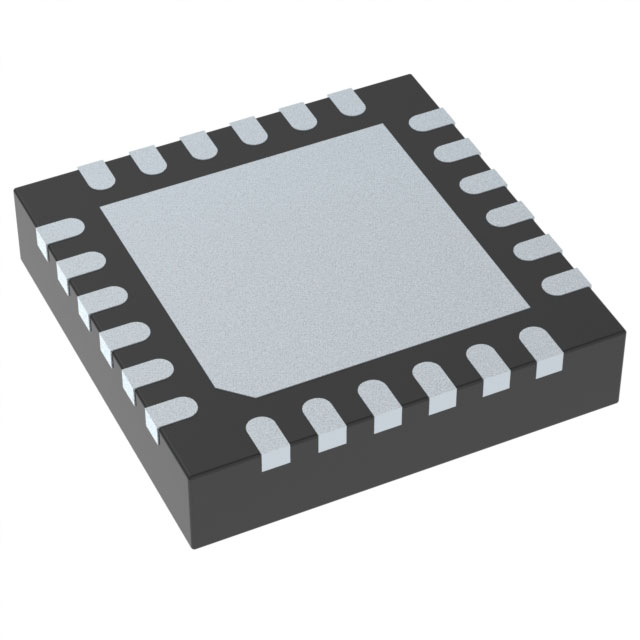

Texas Instruments UCC28782ARTWT							Flyback	24-WFQFN Exposed Pad	Surface Mount	-40 C	125 °C	14 V	34 V	Current Limiting Over Temperature Over Voltage Short Circuit	Isolated	24-WQFN	4	4
Texas Instruments UCC28782BDLRTWR							Boost Flyback	24-WFQFN Exposed Pad	Surface Mount	-40 C	125 °C	14 V	34 V	Current Limiting Over Temperature Over Voltage Short Circuit	Isolated	24-WQFN	4	4	Soft Start	17 V
Texas Instruments UCC28782ADRTWR							Boost Flyback	24-WFQFN Exposed Pad	Surface Mount	-40 C	125 °C	14 V	34 V	Current Limiting Over Temperature Over Voltage Short Circuit	Isolated	24-WQFN	4	4	Soft Start	17 V
Texas Instruments UCC28782CDRTWR							Boost Flyback	24-WFQFN Exposed Pad	Surface Mount	-40 C	125 °C	14 V	34 V	Current Limiting Over Temperature Over Voltage Short Circuit	Isolated	24-WQFN	4	4	Soft Start	17 V
Texas Instruments UCC28782ARTWR							Flyback	24-WFQFN Exposed Pad	Surface Mount	-40 C	125 °C	14 V	34 V	Current Limiting Over Temperature Over Voltage Short Circuit	Isolated	24-WQFN	4	4
