212825 Series

DDR4 DIMM Socket, Vertical Surface Mount, 0.38µm Gold Plating, 288 Circuits, with 2.00mm Solder Tab, Blue Housing, Yellow Latch, with Pick-and-Place Tape

Manufacturer: Molex

Catalog

DDR4 DIMM Socket, Vertical Surface Mount, 0.38µm Gold Plating, 288 Circuits, with 2.00mm Solder Tab, Blue Housing, Yellow Latch, with Pick-and-Place Tape

Part	Memory Type	Features	Connector Style	Standards	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Mounting Type	Mounting Feature	Height [z]	Height [z]	Color	Card Thickness	Card Thickness
Molex 2128254008	DDR4 SDRAM	Board Lock Latches	DIMM	MO-309	0.76 Ám	30 Áin	288	Gold	Surface Mount	Normal Standard - Top
Molex 2128253656	DDR4 SDRAM	Latches	DIMM	MO-309	0.38 µm	15 µin	288	Gold	Surface Mount	Normal Standard - Top	0.571 in	14.5 mm	Blue	0.055 in	1.4 mm

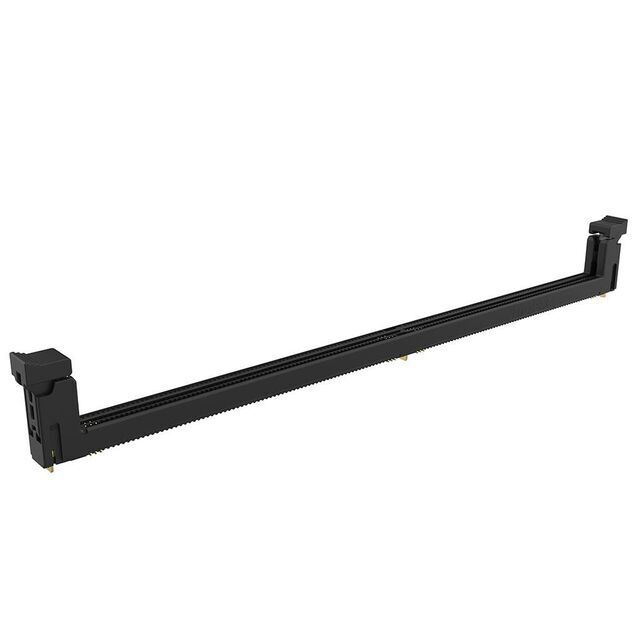

Molex 2128252502	DDR4 SDRAM	Latches	DIMM	MO-309	0.76 Ám	30 Áin	288	Gold	Surface Mount	Normal Standard - Top	0.571 in	14.5 mm	Black	0.055 in	1.4 mm
Molex 2128253652	DDR4 SDRAM	Latches	DIMM	MO-309	0.38 µm	15 µin	288	Gold	Surface Mount	Normal Standard - Top	0.571 in	14.5 mm	Black	0.055 in	1.4 mm
Molex 2128253659	DDR4 SDRAM	Latches	DIMM	MO-309	0.38 µm	15 µin	288	Gold	Surface Mount	Normal Standard - Top	0.571 in	14.5 mm	Black	0.055 in	1.4 mm
Molex 2128252654	DDR4 SDRAM	Latches	DIMM	MO-309	0.38 µm	15 µin	288	Gold	Surface Mount	Normal Standard - Top	0.571 in	14.5 mm	White	0.055 in	1.4 mm
Molex 2128253658	DDR4 SDRAM	Latches	DIMM	MO-309	0.38 µm	15 µin	288	Gold	Surface Mount	Normal Standard - Top	0.571 in	14.5 mm	Yellow	0.055 in	1.4 mm

Catalog

DDR4 DIMM Socket, Vertical Surface Mount, 0.38µm Gold Plating, 288 Circuits, with 2.00mm Solder Tab, Blue Housing, Yellow Latch, with Pick-and-Place Tape
