085732 Series
Manufacturer: Molex
Beta
⌘K

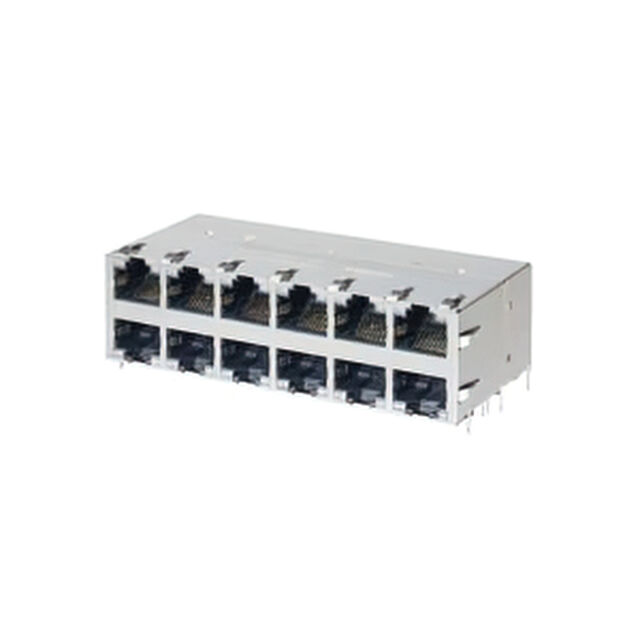

12 SHIELDED GOLD COPPER ALLOY WITHLED 0℃~+70℃ PLUGIN ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS
| Part | Mounting Type | Housing Material | Connector Type | Contact Finish Thickness | Applications | Shield Material | Orientation | LED Color | Features | Termination | Contact Finish | Number of Cores per Jack | Tab Direction | Number of Rows | Height Above Board | Height Above Board | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | RJ45 | Flash | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Brass | 90 ° | Green Yellow | Board Guide | Solder | Gold | 9 | Up and Down | 2 | 25.46 mm | 1.002 in | Shielded EMI Finger | 70 °C | 0 °C | 12 | Copper Alloy |
