7010-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

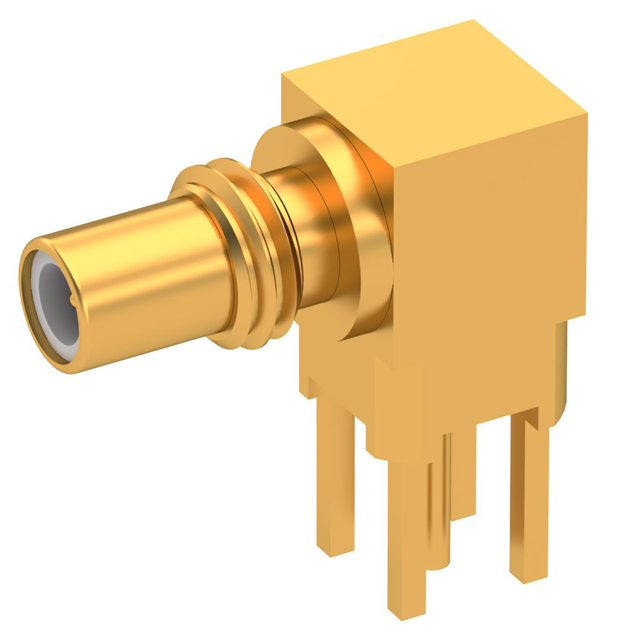

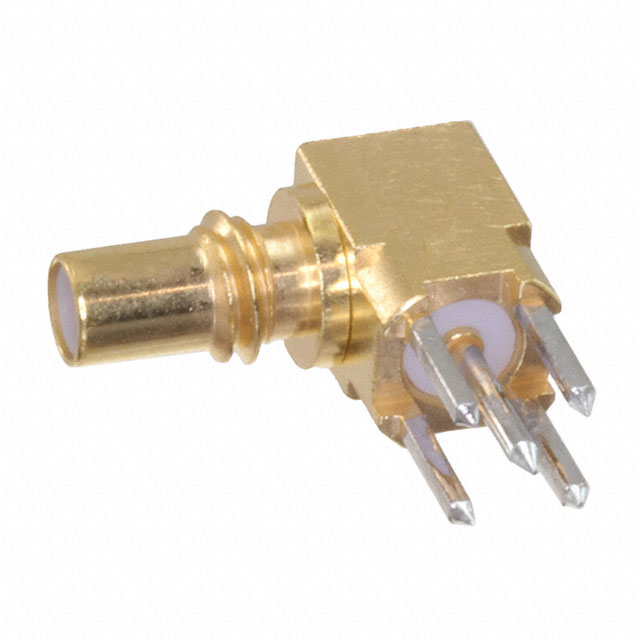

SSMC / RIGHT ANGLE JACK MALE GOL
| Part | Mating Cycles | Body Material | Voltage Rating | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Connector Type | Center Contact Material | Connector Style | Impedance | Fastening Type | Mounting Type | Housing Color | Contact Termination | Shield Termination | Frequency - Max [Max] | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Brass | 250 V | Gold | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Jack Male Pin | Beryllium Copper | SSMC | 50 Ohms | Threaded | Right Angle Through Hole | Gold | Solder | Solder | 12.4 GHz | 1 |
 Radiall USA, Inc. | 500 | Beryllium Copper | 250 V | Gold | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Jack Male Pin | Beryllium Copper | SSMC | 50 Ohms | Threaded | Right Angle Through Hole | Gold | Solder | Solder | 12.4 GHz | 1 |
 Radiall USA, Inc. | 500 | Beryllium Copper | 250 V | Gold | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Jack Male Pin | Beryllium Copper | SSMC | 50 Ohms | Threaded | Right Angle Through Hole | Gold | Solder | Solder | 12.4 GHz | 1 |
