M2022S2 Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Electrical Life	Actuator Material	Features	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Actuator Length	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Bushing Thread	Illumination	Mounting Type	Switch Function	Actuator Length [x]	Panel Cutout Dimensions [diameter]
NKK Switches M2022S2A2W30/UC	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	4 A 6 A	125 V	Standard Round	6.86 mm	PC Pin	30 V	85 °C	-30 ░C	DPDT	Unthreaded	Non-Illuminated	Right Angle Through Hole	On-On
NKK Switches M2022S2D1W01/UC	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	4 A 6 A	125 V	Standard Round		Solder Lug	30 V	85 °C	-30 ░C	DPDT	1/4-40	Non-Illuminated	Panel Mount	On-On	5.08 mm	6.5 mm
NKK Switches M2022S2A2G26	50000 Cycles	Brass Chrome Plated	Epoxy Sealed Terminals	0.4 VA	28 V	Standard Round	6.86 mm	PC Pin	28 V	85 °C	-30 ░C	DPDT	Unthreaded	Non-Illuminated	Through Hole	On-On		6.5 mm
NKK Switches M2022S2A2W30	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	4 A 6 A	125 V	Standard Round	6.86 mm	PC Pin	30 V	85 °C	-30 ░C	DPDT	Unthreaded	Non-Illuminated	Right Angle Through Hole	On-On		6.5 mm
NKK Switches M2022S2S1G06	50000 Cycles	Brass Chrome Plated	Epoxy Sealed Terminals	0.4 VA	28 V	Standard Round		Wire Wrap	28 V	85 °C	-30 ░C	DPDT	1/4-40	Non-Illuminated	Panel Mount	On-On	5.08 mm	6.5 mm
NKK Switches M2022S2A2G03	50000 Cycles	Brass Chrome Plated	Epoxy Sealed Terminals	0.4 VA	28 V	Standard Round	6.86 mm	PC Pin	28 V	85 °C	-30 ░C	DPDT	Unthreaded	Non-Illuminated	Through Hole	On-On		6.5 mm
NKK Switches M2022S2A2W03	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	4 A 6 A	125 V	Standard Round	6.86 mm	PC Pin	30 V	85 °C	-30 ░C	DPDT	Unthreaded	Non-Illuminated	Through Hole	On-On		6.5 mm
NKK Switches M2022S2A2G30	50000 Cycles	Brass Chrome Plated	Epoxy Sealed Terminals	0.4 VA	28 V	Standard Round	6.86 mm	PC Pin	28 V	85 °C	-30 ░C	DPDT	Unthreaded	Non-Illuminated	Right Angle Through Hole	On-On		6.5 mm
NKK Switches M2022S2A2W40/UC	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	4 A 6 A	125 V	Standard Round	6.86 mm	PC Pin	30 V	85 °C	-30 ░C	DPDT	Unthreaded	Non-Illuminated	Right Angle Through Hole Vertical	On-On

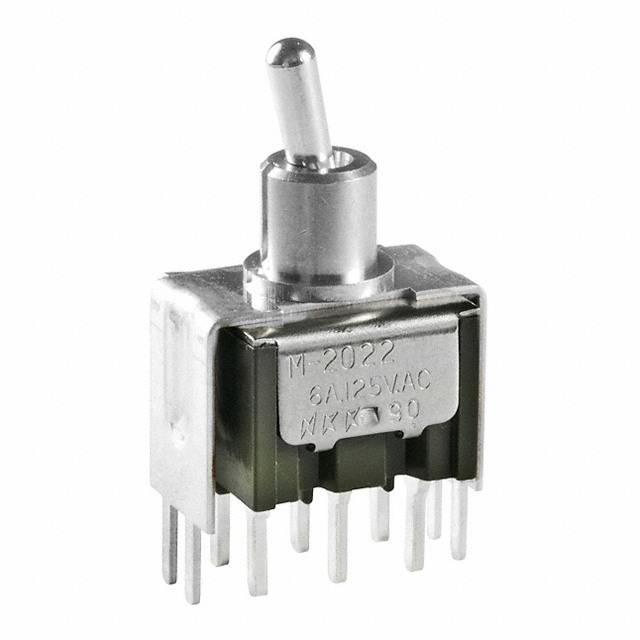

NKK Switches M2022S2A2W13	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	4 A 6 A	125 V	Standard Round	6.86 mm	PC Pin	30 V	85 °C	-30 ░C	DPDT	Unthreaded	Non-Illuminated	Through Hole	On-On		6.5 mm
