P271 Series
Manufacturer: TT Electronics/BI
Beta
⌘K

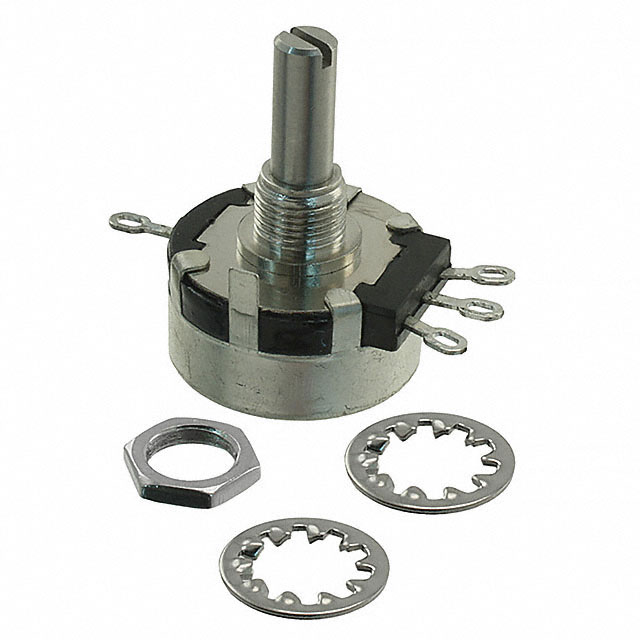

POT 10K OHM 2W PLASTIC LINEAR
| Part | Resistive Material | Termination Style | Adjustment Type | Number of Gangs | Actuator Length [x] | Actuator Length [x] | Built in Switch | Tolerance | Resistance (Ohms) | Power (Watts) | Mounting Type | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Rotation | Size - Body [diameter] | Size - Body [diameter] | Size - Body | Actuator Type | Number of Turns | Bushing Thread | Taper | Features | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 0.625 in | 15.88 mm | None | 10 % | 10k | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Slotted | 1 | 3/8-32 | Linear | |||
TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 0.875 in | 22.23 mm | None | 10 % | 10k | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Round | 1 | 3/8-32 | Linear | Sealed | ||
TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 0.875 in | 22.23 mm | None | 10 % | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Slotted | 1 | 3/8-32 | Linear | 2.5 kOhms | |||
TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 50.8 mm | 50.8 mm | None | 10 % | 10k | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Round | 1 | 3/8-32 | Linear | |||
 TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 0.875 in | 22.23 mm | None | 10 % | 10k | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Slotted | 1 | 3/8-32 | Linear | |||
TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 0.625 in | 15.88 mm | None | 10 % | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Slotted | 1 | 3/8-32 | Linear | 20 kOhms | |||
TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 1 in | 25.4 mm | None | 10 % | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Slotted | 1 | 3/8-32 | Linear | 1 MΩ | |||
TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 1 in | 25.4 mm | None | 10 % | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Slotted | 1 | 3/8-32 | Linear | 1 MΩ | |||
TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 0.875 in | 22.23 mm | None | 10 % | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Slotted | 1 | 3/8-32 | Linear | 2.5 kOhms | |||
TT Electronics/BI | Conductive Plastic | Solder Lug | User Defined | 1 | 0.625 in | 15.88 mm | None | 10 % | 2 W | Panel Mount | 6.35 mm | 0.25 in | 312 ° | 26.67 mm | 1.05 " | Round | Slotted | 1 | 3/8-32 | Linear | 20 kOhms |
