RG-400 Series
Manufacturer: Remington Industries
Beta
⌘K

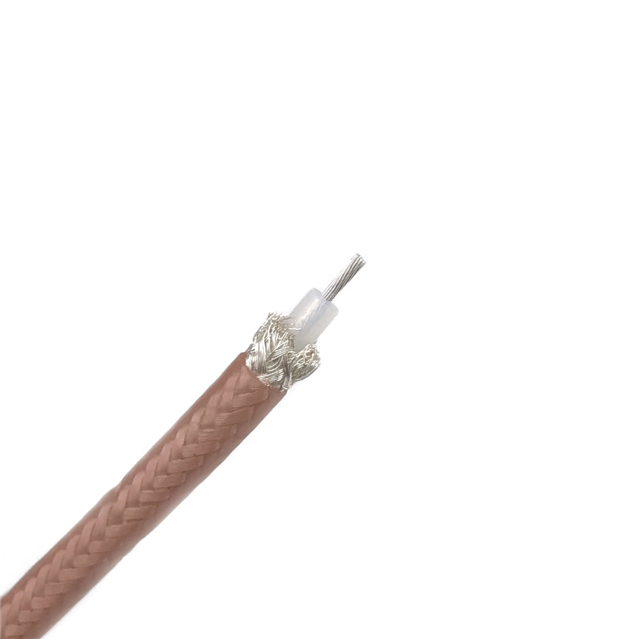

RG-400/U COAX CABLE 4' LENGTH
| Part | Dielectric Material | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Jacket (Insulation) Material | Cable Type | Shield Type | Impedance | Length [x] | Length [x] | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Jacket Color | Conductor Strand [diameter] | Conductor Strand [custom] | Usage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Remington Industries | Polytetrafluoroethylene (PTFE) | Copper Silver Coated | 200 °C | -55 C | Copper Silver Coated | 2.95 mm | 0.116 in | Fluorinated Ethylene-Propylene (FEP) | Coaxial | Double Braid | 50 Ohms | 4 ft | 1.22 m | Direct Burial | 0.195 " | 4.95 mm | RG-400 | Tan | 0.008 in | 19 | Network RF Signal | ||
Remington Industries | Polytetrafluoroethylene (PTFE) | Copper Silver Coated | 200 °C | -55 C | Copper Silver Coated | 2.95 mm | 0.116 in | Fluorinated Ethylene-Propylene (FEP) | Coaxial | Double Braid | 50 Ohms | Direct Burial | 0.195 " | 4.95 mm | RG-400 | Tan | 0.008 in | 19 | Network RF Signal | 7.62 m | 25 ft | ||
Remington Industries | Polytetrafluoroethylene (PTFE) | Copper Silver Coated | 200 °C | -55 C | Copper Silver Coated | 2.95 mm | 0.116 in | Fluorinated Ethylene-Propylene (FEP) | Coaxial | Double Braid | 50 Ohms | 1 ' | 300 mm | Direct Burial | 0.195 " | 4.95 mm | RG-400 | Tan | 0.008 in | 19 | Network RF Signal |
