HEAWS Series

Catalog

INDUCTOR, UNSHIELDED, 3.3UH, 5.3A ROHS COMPLIANT: YES

Part	DC Resistance (DCR) [Max]	Package / Case	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Mounting Type	Inductance Frequency - Test	Current Rating (Amps)	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Tolerance	Ratings	Material - Core	DC Resistance (DCR)
Murata Power Solutions Inc. HEAWS-3R3N=P3	10 mOhm	Nonstandard	3.3 µH	125 °C	-40 °C	0.394 in	10 mm	Drum Core Wirewound	Surface Mount	100 kHz	5.3 A	Shielded	0.409 "	10.7 mm	10.4 mm	0.421 in	8 A	30 %	AEC-Q200	Ferrite

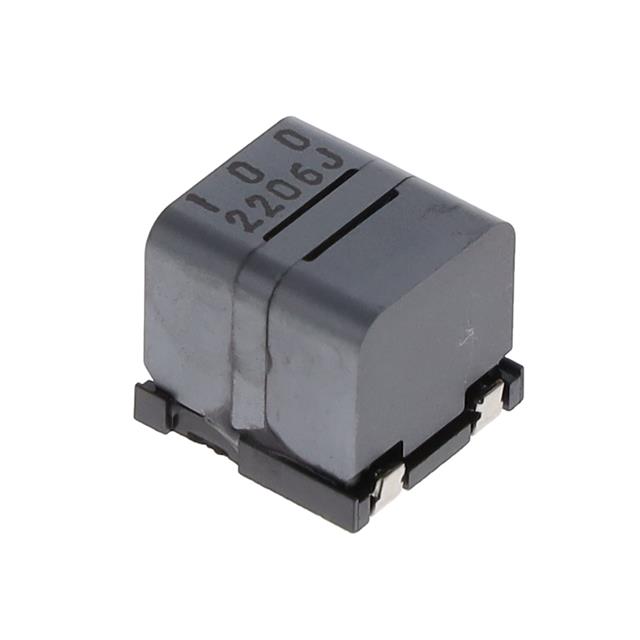

Murata Power Solutions Inc. HEAWS-100M=P3		Nonstandard	10 µH	125 °C	-40 °C	0.394 in	10 mm	Drum Core Wirewound	Surface Mount	100 kHz	2.8 A	Shielded	0.409 "	10.7 mm	10.4 mm	0.421 in	5 A	20 %	AEC-Q200	Ferrite	25 mOhm
