SMH150 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 10POS 1MM

Part	Contact Finish Thickness - Post	Contact Finish - Post	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Material	Mounting Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Rows [custom]	Insulation Color	Number of Positions	Fastening Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Shrouding	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Insulation Material	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Sullins Connector Solutions SMH150-LPPE-D05-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	10	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in	Flash	Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm

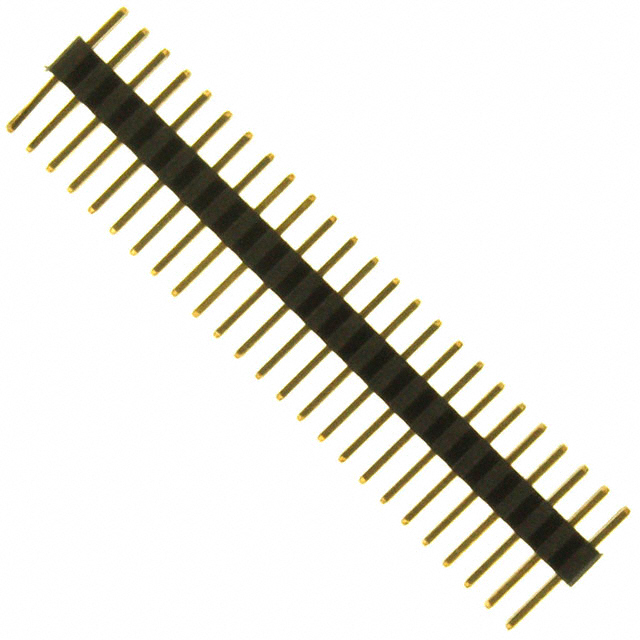

Sullins Connector Solutions SMH150-LPSE-D25-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	50	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in		Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm	0.25 µm	10 µin
Sullins Connector Solutions SMH150-LPPE-D35-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	70	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in	Flash	Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm
Sullins Connector Solutions SMH150-LPSE-D32-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	64	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in		Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm	0.25 µm	10 µin
Sullins Connector Solutions SMH150-LPSE-D22-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	44	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in		Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm	0.25 µm	10 µin
Sullins Connector Solutions SMH150-LPPE-D06-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	12	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in	Flash	Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm
Sullins Connector Solutions SMH150-LPPE-D41-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	82	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in	Flash	Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm
Sullins Connector Solutions SMH150-LPPE-D31-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	62	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in	Flash	Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm
Sullins Connector Solutions SMH150-LPSE-D14-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	28	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in		Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm	0.25 µm	10 µin
Sullins Connector Solutions SMH150-LPPE-D45-ST-BK	Flash	Gold	Header	0.039 in	1 mm	Male Pin	Phosphor Bronze	Through Hole	1.8 mm	0.071 in	UL94 V-0	2	Black	90	Push-Pull	All	125 °C	-40 C	Solder	1 mm	0.039 in	Gold	Unshrouded	Square	2.5 mm	0.098 in	Flash	Liquid Crystal Polymer (LCP)	0.059 in	1.5 mm	0.228 in	5.8 mm
