845-130 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 130POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Number of Positions	Number of Rows [custom]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Color	Termination	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Mounting Type	Gender	Read Out	Card Type	Flange Feature	Features
EDAC Inc. 845-130-544-504	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Wire Wrap	Cantilever	0.156 "	3.96 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Through Hole	Female	Dual	Non Specified - Dual Edge

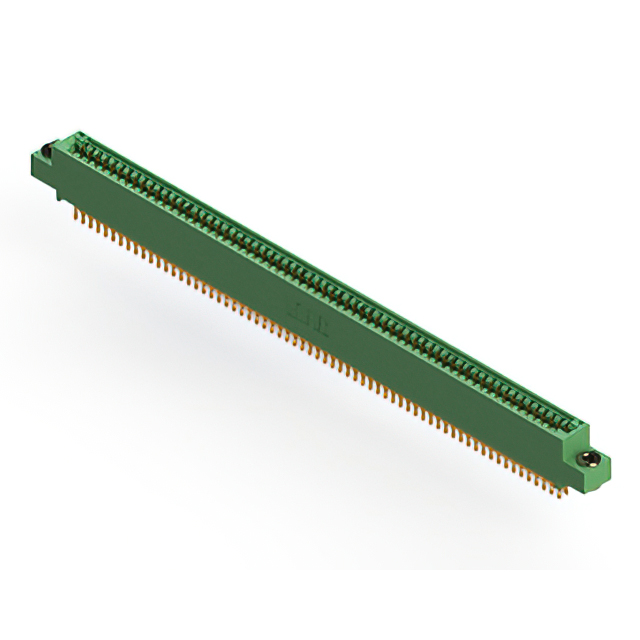

EDAC Inc. 845-130-555-503	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Solder	Cantilever	0.116 "	2.95 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Board Edge Straddle Mount	Female	Dual	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	Card Extender
EDAC Inc. 845-130-559-508	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Solder	Cantilever			Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Right Angle Through Hole	Female	Dual	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-130-560-807	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Solder	Cantilever			Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Board Edge Straddle Mount	Female	Dual	Non Specified - Dual Edge	M3 Threaded Insert Top Mount Opening	Card Extender
EDAC Inc. 845-130-500-503	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Solder Eyelet(s)	Cantilever	0.116 "	2.95 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Through Hole	Female	Dual	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening

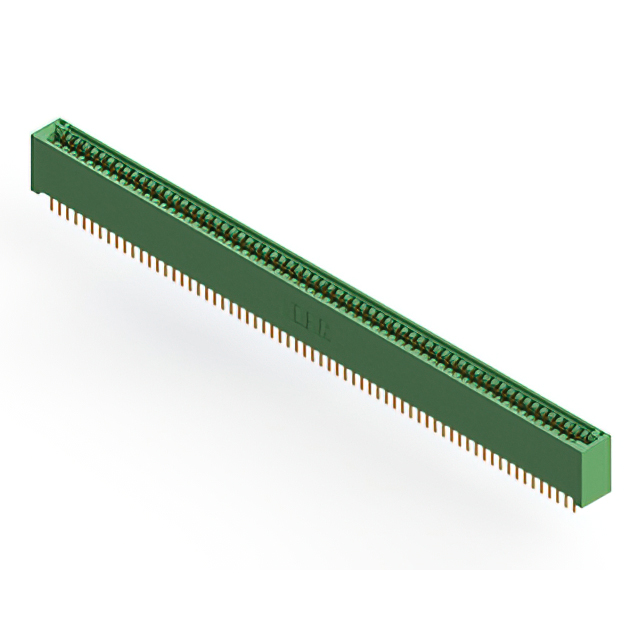

EDAC Inc. 845-130-520-201	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Solder	Cantilever			Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Through Hole	Female	Dual	Non Specified - Dual Edge
EDAC Inc. 845-130-558-508	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Solder	Cantilever			Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Right Angle Through Hole	Female	Dual	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-130-520-807	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Solder	Cantilever			Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Through Hole	Female	Dual	Non Specified - Dual Edge	M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-130-558-202	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Solder	Cantilever	0.128 "	3.25 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Right Angle Through Hole	Female	Dual	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded

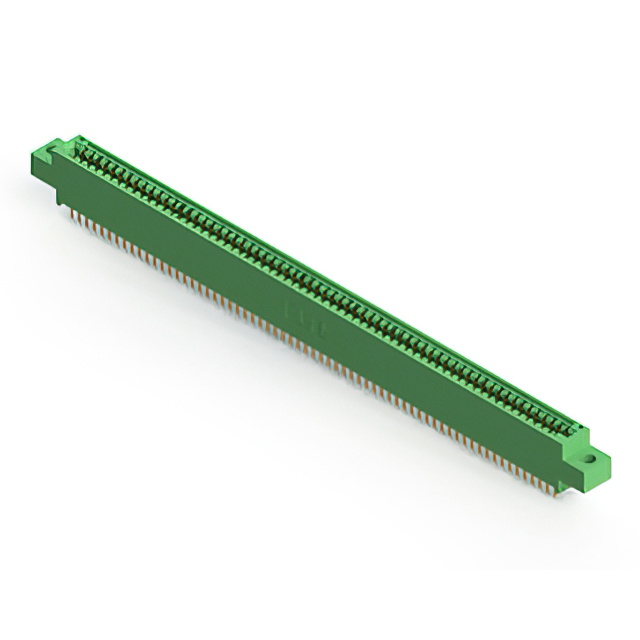

EDAC Inc. 845-130-525-804	Diallyl Phthalate (DAP)	2	Copper Alloy	130	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Solder	Cantilever	0.156 "	3.96 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	65	Through Hole	Female	Dual	Non Specified - Dual Edge
