0666-0 Series

Catalog

CONN RECEPT PIN .015-.025" .138"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Tail Type	Contact Material	Mounting Hole Diameter	Mounting Hole Diameter	Termination
Mill-Max Manufacturing Corp. 0666-0-15-01-32-14-10-0	-55 C	125 °C	3.51 mm	0.138 in	0.25 Ám	10 Áin	0.075 in	1.91 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	3.51 mm	0.138 in	Gold	No Tail	Beryllium Copper	0.064 "	1.63 mm	Solder
Mill-Max Manufacturing Corp. 0666-0-15-80-32-14-10-0	-55 C	125 °C	3.51 mm	0.138 in	0.25 Ám	10 Áin	0.075 in	1.91 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	3.51 mm	0.138 in	Gold	No Tail	Beryllium Copper	0.064 "	1.63 mm	Solder

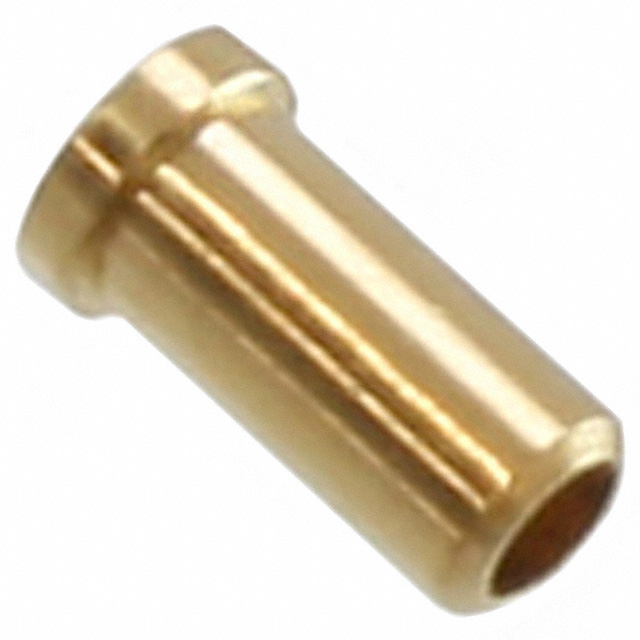

Mill-Max Manufacturing Corp. 0666-0-15-15-32-14-10-0	-55 C	125 °C	3.51 mm	0.138 in	0.25 Ám	10 Áin	0.075 in	1.91 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	3.51 mm	0.138 in	Gold	No Tail	Beryllium Copper	0.064 "	1.63 mm	Solder

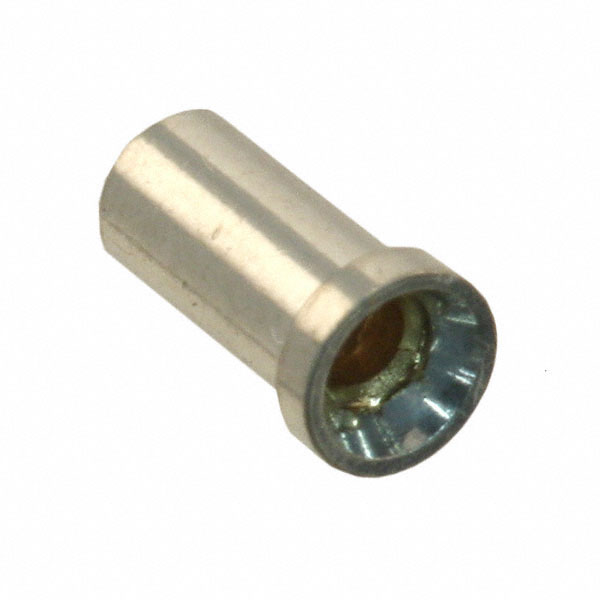

Mill-Max Manufacturing Corp. 0666-0-15-01-32-27-10-0	-55 C	125 °C	3.51 mm	0.138 in	0.76 Ám	30 Áin	0.075 in	1.91 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	3.51 mm	0.138 in	Gold	No Tail	Beryllium Copper	0.064 "	1.63 mm	Solder
Mill-Max Manufacturing Corp. 0666-0-15-15-32-27-10-0	-55 C	125 °C	3.51 mm	0.138 in	0.76 Ám	30 Áin	0.075 in	1.91 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	3.51 mm	0.138 in	Gold	No Tail	Beryllium Copper	0.064 "	1.63 mm	Solder
