TR9KI750 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

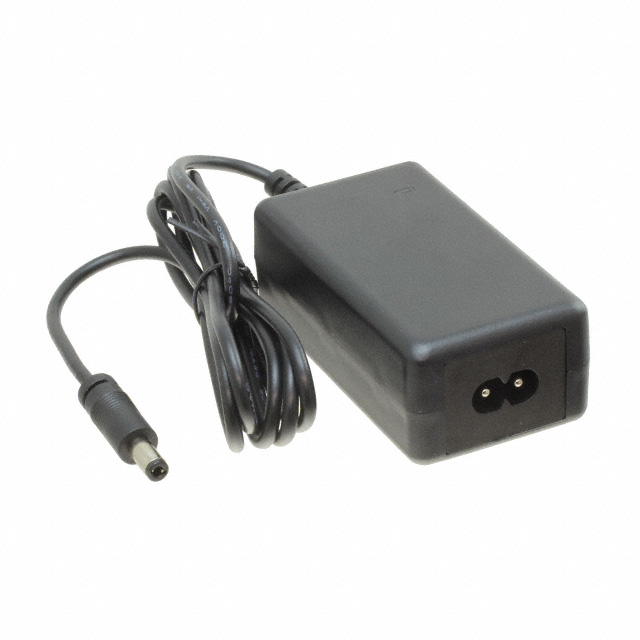

AC/DC DESKTOP ADAPTER 24V 18W
| Part | Approval Agency | Voltage - Output | Polarization | Input Type | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Standard Number | Power (Watts) | Output Connector [x] | Output Connector [diameter] | Output Connector | Form | No Load Power Consumption | Cord Length | Cord Length | Region Utilized | Input Connector | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI | 24 V | Positive Center | Cord (Sold Separately) | Level VI | 1.26 " | 1.85 in | 47 mm | 87 mm | 32 mm | 3.43 " | 264 VAC | 90 VAC | -20 ░C | 40 °C | Household Appliances ITE (Commercial) Medical | 1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1 | 18 W | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | Desktop (Class II) | 75 mW | 1.5 m | 59 in | International | IEC 320-C8 | 750 mA |
