8112 Series
Manufacturer: Belden Inc.
Beta
⌘K

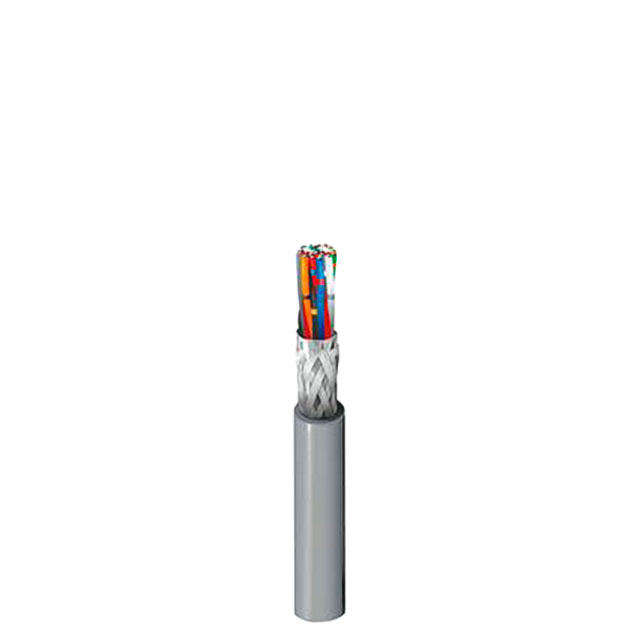

MULTI-PAIR 25COND 24AWG
| Part | Shield Coverage | Shield Material | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Features | Jacket (Insulation) Material | Conductor Material | Usage | Jacket Color | Shield Type | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 304.8 m | 1000 ft | 11.18 mm | 0.44 " | Foam Polyethylene (FPE) | Drain Wire | Poly-Vinyl Chloride (PVC) | Copper Tinned | Computer | Chrome | Braid Foil | 25 | 7 | 32 AWG | 0.035 in | 0.889 mm | 24 AWG | 80 °C | -30 ░C | UL Style 2919 | Multi-Pair | ||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 11.18 mm | 0.44 " | Foam Polyethylene (FPE) | Drain Wire | Poly-Vinyl Chloride (PVC) | Copper Tinned | Chrome | Braid Foil | 25 | 7 | 32 AWG | 0.035 in | 0.889 mm | 24 AWG | 80 °C | -30 ░C | UL Style 2919 | Multi-Pair | 100 ft | 30.5 m |
