D01-984 Series

Catalog

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Part	Insertion Force [Max]	Insertion Force [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Tail Type	Length - Overall [x]	Length - Overall [x]	Termination

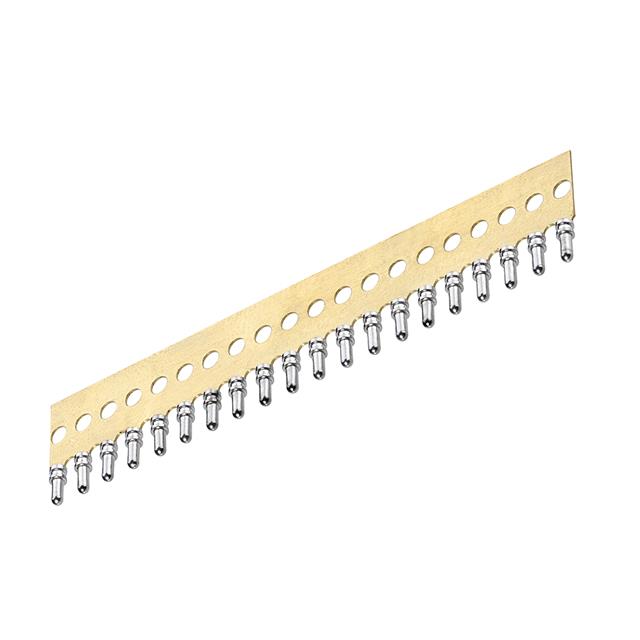

Harwin Inc. D01-9842001	6 N	2 N	Strip of 20	100 °C	-55 C	Gold	0.124 in	3.15 mm	0.057 in	1.45 mm	Beryllium Copper	1.09 mm	0.043 in	0.99 mm	0.039 in	No Tail	0.142 in	3.61 mm	Solder

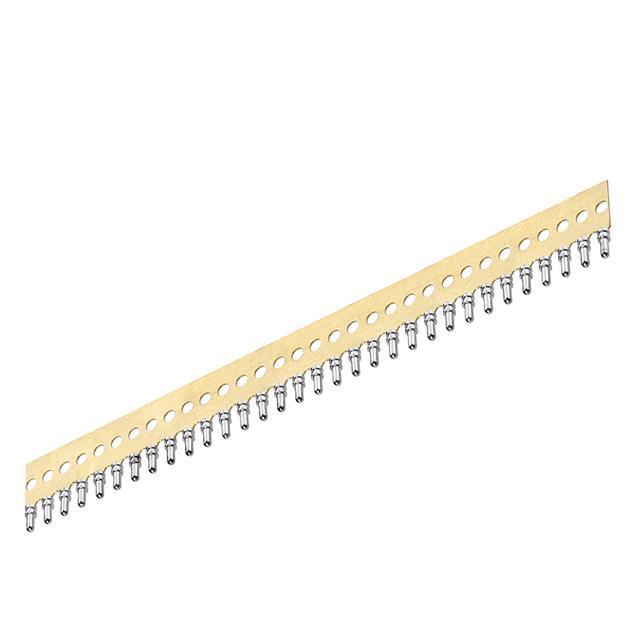

Harwin Inc. D01-9843201	6 N	2 N	Strip of 32	100 °C	-55 C	Gold	0.124 in	3.15 mm	0.057 in	1.45 mm	Beryllium Copper	1.09 mm	0.043 in	0.99 mm	0.039 in	No Tail	0.142 in	3.61 mm	Solder

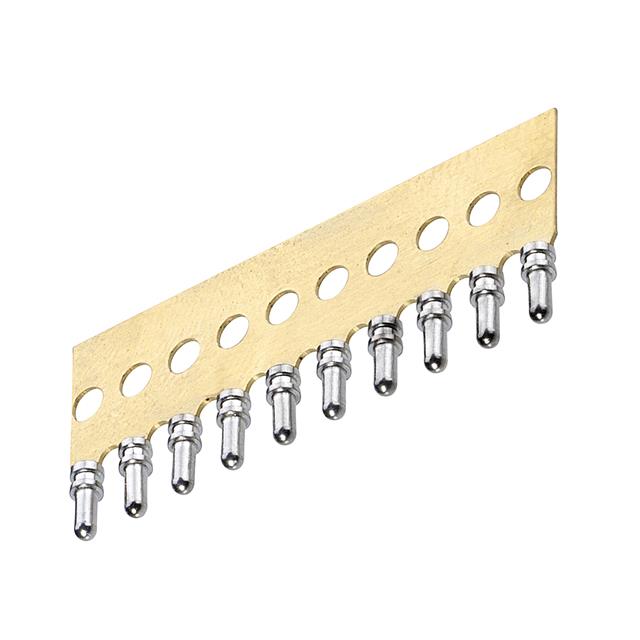

Harwin Inc. D01-9841001	6 N	2 N	Strip of 10	100 °C	-55 C	Gold	0.124 in	3.15 mm	0.057 in	1.45 mm	Beryllium Copper	1.09 mm	0.043 in	0.99 mm	0.039 in	No Tail	0.142 in	3.61 mm	Solder
Harwin Inc. D01-9841401	6 N	2 N	Strip of 14	100 °C	-55 C	Gold	0.124 in	3.15 mm	0.057 in	1.45 mm	Beryllium Copper	1.09 mm	0.043 in	0.99 mm	0.039 in	No Tail	0.142 in	3.61 mm	Solder
Harwin Inc. D01-9841201	6 N	2 N		100 °C	-55 C	Gold	0.124 in	3.15 mm	0.057 in	1.45 mm	Beryllium Copper	1.09 mm	0.043 in	0.99 mm	0.039 in	No Tail	0.142 in	3.61 mm	Solder

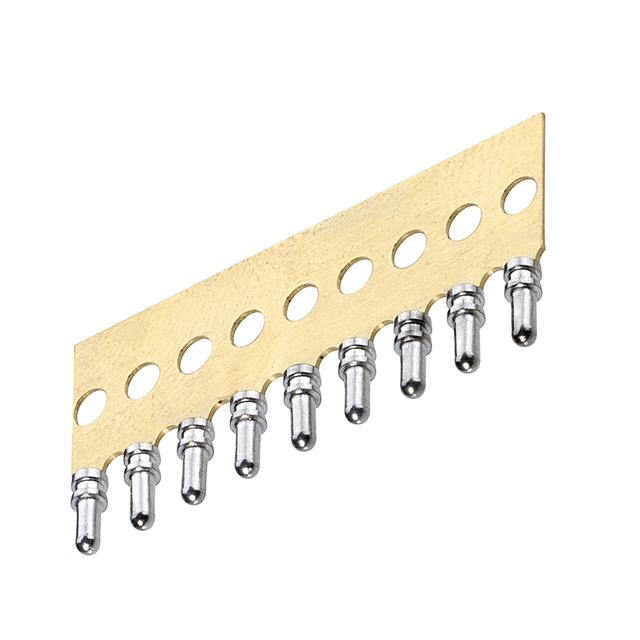

Harwin Inc. D01-9840901	6 N	2 N	Strip of 9	100 °C	-55 C	Gold	0.124 in	3.15 mm	0.057 in	1.45 mm	Beryllium Copper	1.09 mm	0.043 in	0.99 mm	0.039 in	No Tail	0.142 in	3.61 mm	Solder

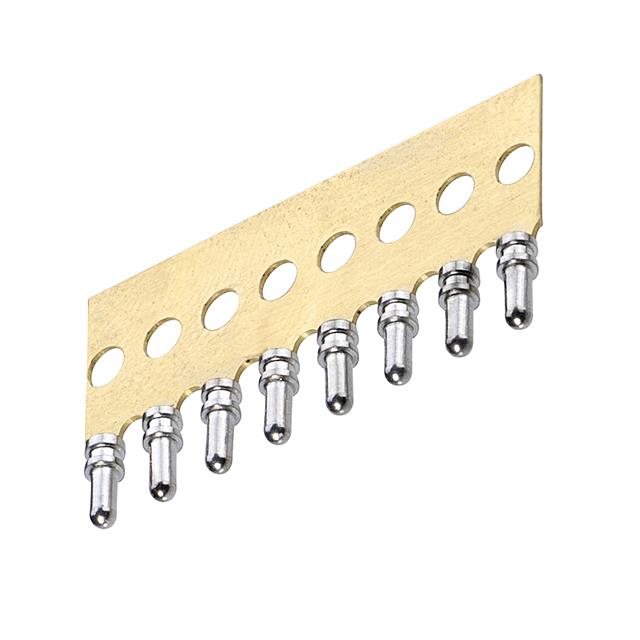

Harwin Inc. D01-9840801	6 N	2 N	Strip of 8	100 °C	-55 C	Gold	0.124 in	3.15 mm	0.057 in	1.45 mm	Beryllium Copper	1.09 mm	0.043 in	0.99 mm	0.039 in	No Tail	0.142 in	3.61 mm	Solder
