QN9080 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

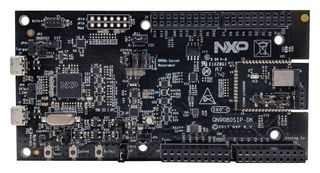

DEVELOPMENT KIT, QN908X BLE SOC, QN9080 USB DONGLE, BUTTONS/PIEZO BUZZER/LED, ARDUINO INTERFACE
| Part | Frequency | Contents | Utilized IC / Part | Type | Serial Interfaces | Modulation | Memory Type | Memory Size (Flash) | Memory Size (SRAM) | Current - Transmitting | Data Rate (Max) | RF Family/Standard | Sensitivity | Protocol | Package Name | Package Length | Package Width | Frequency (Max) | Frequency (Min) | Operating Temperature (Min) | Operating Temperature (Max) | Power - Output | Mounting Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | GPIO Count | Package / Case | Current - Receiving | Supplied Contents | For Use With/Related Products | Memory Size (ROM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 2.4 GHz | Board | QN908x | Bluetooth® 5.x (BLE) Transceiver | |||||||||||||||||||||||||||
 NXP USA Inc. | TxRx + MCU | ADC GPIO I2C SPI UART USART USB | FSK | Flash SRAM | 512 kB | 128 kB | 3.5 mA | 2 MBaud | Bluetooth | -92.7 dBm | Bluetooth v5.0 | 54-LFLGA | 9.7 mm | 6 mm | 2.4835 GHz | 2.4 GHz | -40 °C | 85 °C | 2 dBm | Surface Mount | 1.67 V | 3.6 V | 32 | 54-LFLGA | 4 mA | ||||||
 NXP USA Inc. | 2.4 GHz | Board | QN908x | Bluetooth® 5.x (BLE) Transceiver | Board(s) | QN908x | |||||||||||||||||||||||||
 NXP USA Inc. | 2.4 GHz | TxRx + MCU | I2C SPI UART USART USB | FSK | Flash ROM SRAM | 512 kB | 128 kB | 3.5 mA | 2 MBaud | Bluetooth | -95 dBm | Bluetooth v5.0 | 48-HVQFN | 6 mm | 6 mm | -40 °C | 85 °C | 2 dBm | Surface Mount | 1.62 V | 3.6 V | 35 | 48-VFQFN Exposed Pad | 3.5 mA | 256 kB | ||||||
 NXP USA Inc. | 48-HVQFN | 6 mm | 6 mm | Surface Mount | 48-VFQFN Exposed Pad | ||||||||||||||||||||||||||
 NXP USA Inc. | 32 MHz | TxRx + MCU | I2C SPI UART USART USB | FSK GFSK | Flash ROM SRAM | 512 kB | 128 kB | 3.5 mA | 16 Mbps | Bluetooth | -95 dBm | Bluetooth v5.0 | 47-WLSCP | 3.28 mm | 3.2 mm | -40 °C | 85 °C | 2 dBm | Surface Mount | 1.62 V | 3.6 V | 47-XFBGA WLCSP | 5 mA | 256 kB |
