IDLV-25 Series

Catalog

LED POWER SUPPLIES 25.2W 24V 1.0

Part	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Topology	Efficiency	Power (Watts)	Voltage - Output	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Approval Agency	Number of Outputs	Current - Output (Max) [Max]	Dimming	Type	Voltage - Isolation

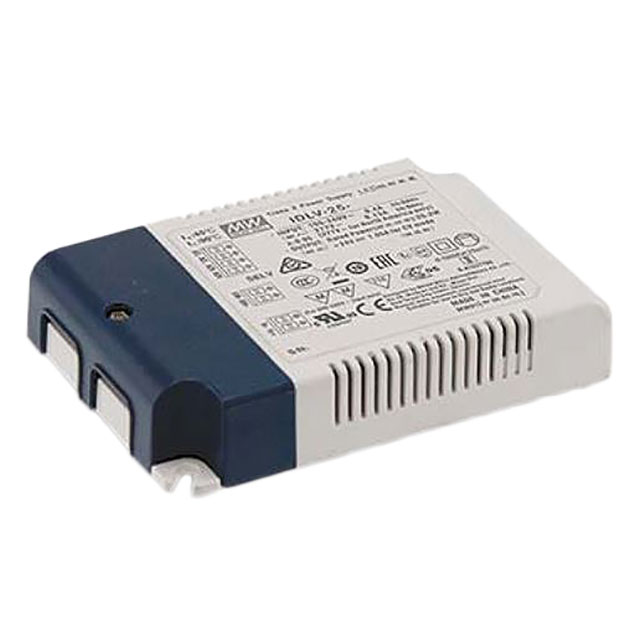

MEAN WELL USA Inc. IDLV-25A-24	Chassis Mount	295 VAC	90 VAC	AC DC Converter	81 %	25 W	24 V	Terminal Block	-20 ░C	90 °C	OCP SCP	CB CCC CE cURus EAC ENEC RCM	1	1.05 A	PWM	Constant Voltage	3750 VDC
MEAN WELL USA Inc. IDLV-25A-48	Chassis Mount	295 VAC	90 VAC	AC DC Converter	83 %	25 W	48 V	Terminal Block	-20 ░C	90 °C	OCP SCP	CB CCC CE cURus EAC ENEC RCM	1	520 mA	Analog PWM	Constant Voltage	3750 VDC
MEAN WELL USA Inc. IDLV-25A-12	Chassis Mount	295 VAC	90 VAC	AC DC Converter	80 %	22 W	12 V	Terminal Block	-20 ░C	90 °C	OCP SCP	CB CCC CE cURus EAC ENEC RCM	1	1.8 A	PWM	Constant Voltage	3750 VDC
MEAN WELL USA Inc. IDLV-25-24	Chassis Mount	295 VAC	90 VAC	AC DC Converter	81 %	25 W	24 V	Terminal Block	-20 ░C	90 °C	OCP SCP	CB CCC CE cURus EAC ENEC RCM	1	1.05 A	PWM	Constant Voltage	3750 VDC
