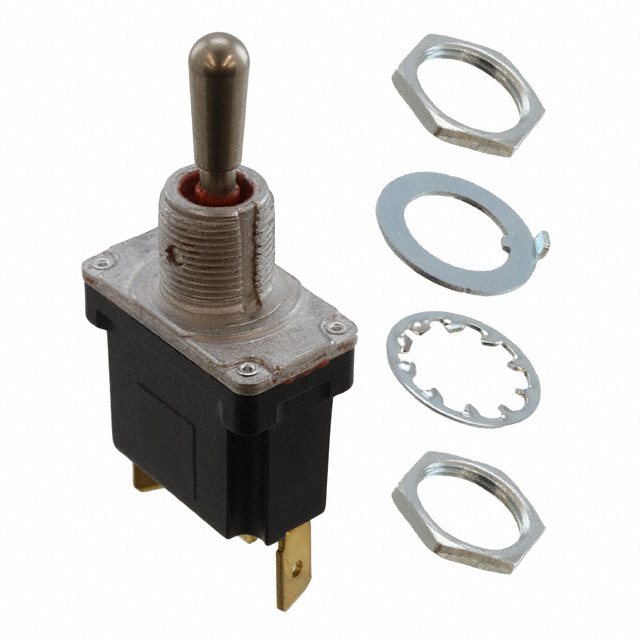

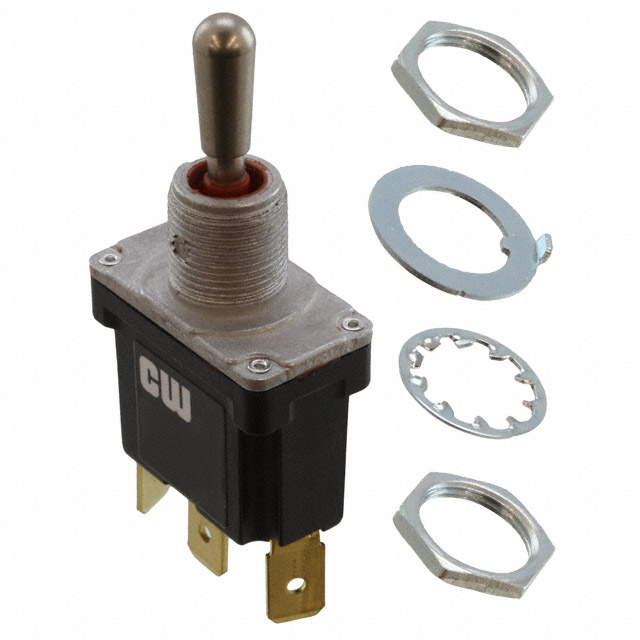

GTB-1B1 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH TOGGLE SPDT 12A 125V
| Part | Actuator Type | Panel Cutout Dimensions [diameter] | Actuator Material | Mounting Type | Ingress Protection | Electrical Life | Circuit | Termination Style | Illumination | Bushing Thread | Switch Function | Current Rating (Amps) | Actuator Length [x] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | Standard Round | 12 mm | Brass Nickel Plated | Panel Mount | IP68 - Dust Tight Waterproof | 30000 Cycles | SPDT | Quick Connect - 0.250" (6.3mm) | Non-Illuminated | 15/32-32 | Mom-Off-Mom | 12 A | 17 mm | 125 V |
 CW Industries | Standard Round | 12 mm | Brass Nickel Plated | Panel Mount | IP68 - Dust Tight Waterproof | 30000 Cycles | SPDT | Quick Connect - 0.250" (6.3mm) | Non-Illuminated | 15/32-32 | On-Off-On | 12 A | 17 mm | 125 V |
