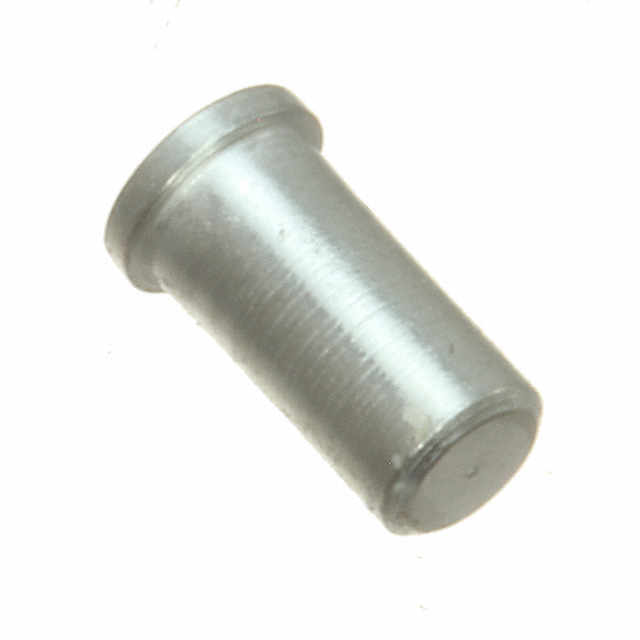

0415-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

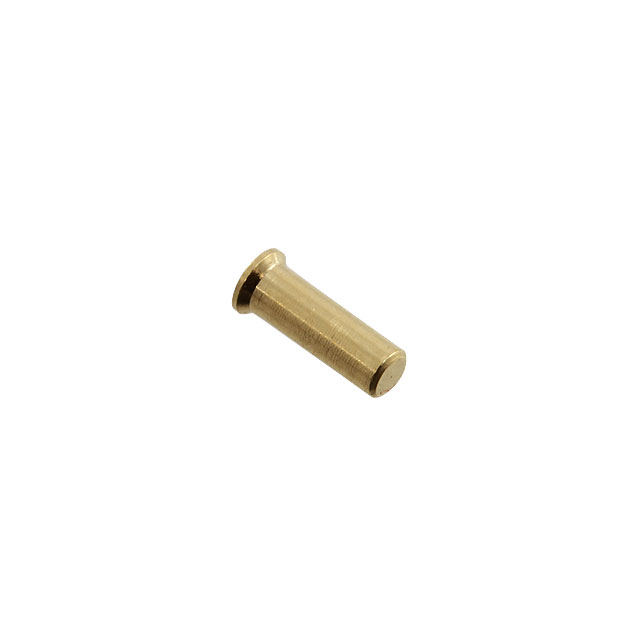

CONN RECEPT PIN .022-.034" .063"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Accepts Square Pin Size | Accepts Square Pin Size | Termination | Tail Type | Socket Depth | Socket Depth | Flange Diameter [diameter] | Flange Diameter [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Min] [diameter] | Length - Overall | Length - Overall | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.051 in | 1.3 mm | 0.025 in | 0.64 mm | Solder | No Tail | 4.19 mm | 0.165 in | 0.078 " | 1.98 mm | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | 0.19 in | 4.83 mm | Beryllium Copper | 0.063 in | 1.6 mm | 0.25 Ám | 10 Áin |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.051 in | 1.3 mm | 0.025 in | 0.64 mm | Solder | No Tail | 4.19 mm | 0.165 in | 0.078 " | 1.98 mm | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | 0.19 in | 4.83 mm | Beryllium Copper | 0.063 in | 1.6 mm | 0.25 Ám | 10 Áin |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.051 in | 1.3 mm | 0.025 in | 0.64 mm | Solder | No Tail | 4.19 mm | 0.165 in | 0.078 " | 1.98 mm | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | 0.19 in | 4.83 mm | Beryllium Copper | 0.063 in | 1.6 mm | 0.25 Ám | 10 Áin |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Tin-Lead | 0.051 in | 1.3 mm | 0.025 in | 0.64 mm | Solder | No Tail | 4.19 mm | 0.165 in | 0.078 " | 1.98 mm | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | 0.19 in | 4.83 mm | Beryllium Copper | 0.063 in | 1.6 mm | 5.08 Ám | 200 Áin |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Tin | 0.051 in | 1.3 mm | 0.025 in | 0.64 mm | Solder | No Tail | 4.19 mm | 0.165 in | 0.078 " | 1.98 mm | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | 0.19 in | 4.83 mm | Beryllium Copper | 0.063 in | 1.6 mm | 5.08 Ám | 200 Áin |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.051 in | 1.3 mm | 0.025 in | 0.64 mm | Solder | No Tail | 4.19 mm | 0.165 in | 0.078 " | 1.98 mm | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | 0.19 in | 4.83 mm | Beryllium Copper | 0.063 in | 1.6 mm | 0.76 Ám | 30 Áin |
