EC20 Series

Manufacturer: Quectel

Catalog

CELLULAR MODULE, GSM, LTE-FDD, LTE-TDD, TDSCDMA, UMTS, 3.3V TO 4.3V, 29MM X 32MM X 2.4MM

Part	Mounting Type	Frequency	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Data Rate	Current - Transmitting	Protocol	Current - Receiving	Sensitivity	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Antenna Type
Quectel EC20CFATEA-512-STD	Surface Mount	1.8 GHz 900 MHz	33 dBm	4.3 V	3.3 V	Cellular Navigation	150 Mbps	20 mA	BeiDou CDMA EDGE Galileo GLONASS GNSS GPRS GPS GSM LTE UMTS WCDMA	20 mA	-112 dBm	ADC SDIO UART USB	85 °C	-40 C	Module	Antenna Not Included
Quectel EC20EATEA-256-STD	Surface Mount	1.8 GHz 900 MHz	33 dBm	4.3 V	3.3 V	Cellular Navigation	150 Mbps	20 mA	BeiDou CDMA EDGE Galileo GLONASS GNSS GPRS GPS GSM LTE UMTS WCDMA	20 mA	-112 dBm	ADC SDIO UART USB	85 °C	-40 C	Module	Antenna Not Included

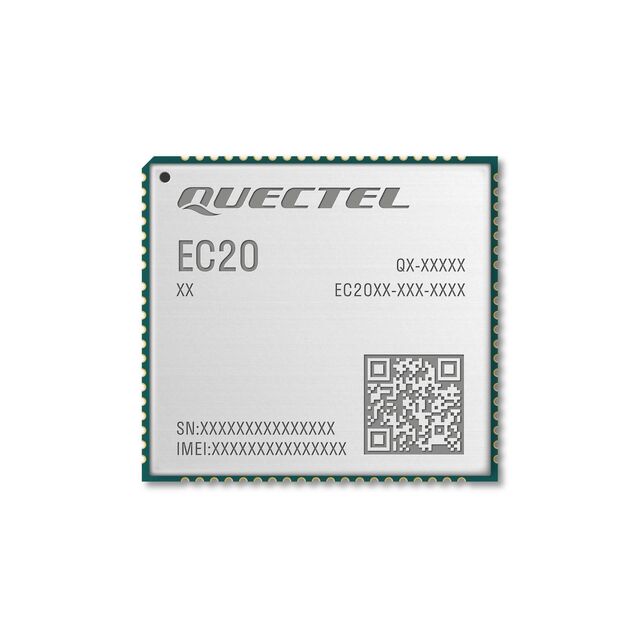

Quectel EC20AATEA-256-STD	Surface Mount	1.8 GHz 900 MHz	33 dBm	4.3 V	3.3 V	Cellular Navigation	150 Mbps	20 mA	BeiDou CDMA EDGE Galileo GLONASS GNSS GPRS GPS GSM LTE UMTS WCDMA	20 mA	-112 dBm	ADC SDIO UART USB	85 °C	-40 C	Module	Antenna Not Included
