8815-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

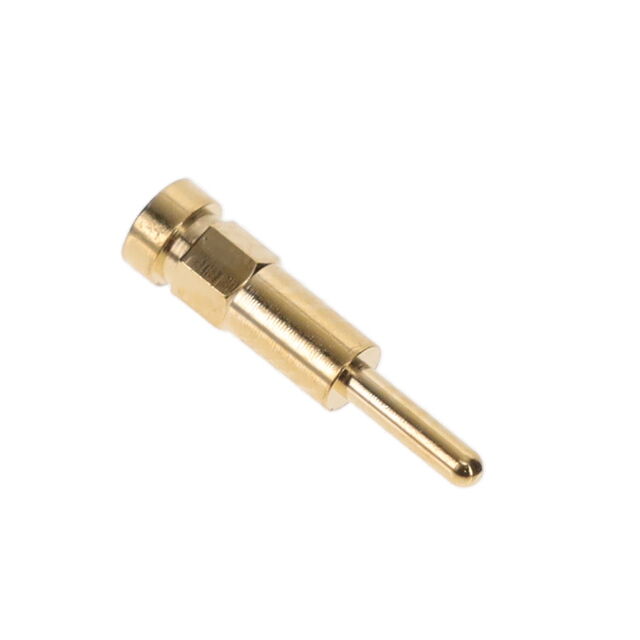

CONN PC PIN CIRC .030DIA GOLD
| Part | Contact Finish | Termination | Length - Above Flange [x] | Length - Above Flange [x] | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Terminal Style | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Gold | Hex Press-Fit | 7.11 mm | 0.28 in | Non-Insulated | 0.03 in | 0.76 mm | 0.075 in | 1.91 mm | PC Pin | 0.31 in | 7.87 mm | 0.066 in | 1.68 mm | Brass Alloy | Single End | Through Hole | 50 µin | 1.27 µm |
 Mill-Max Manufacturing Corp. | Gold | Hex Press-Fit | 7.11 mm | 0.28 in | Non-Insulated | 0.03 in | 0.76 mm | 0.075 in | 1.91 mm | PC Pin | 0.31 in | 7.87 mm | 0.066 in | 1.68 mm | Brass Alloy | Single End | Through Hole | 20 µin | 0.51 µm |
