la Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH: PUSH-BUTTON; POS: 2; SPST NC + NO; 6A/24VDC; 5A/250VAC
| Part | Current Rating (Amps) | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Type | Panel Cutout Dimensions [diameter] | Switch Function | Voltage Rating - AC | Actuator Type | Ingress Protection | Mounting Type | Circuit | Termination Style | Mechanical Life | Electrical Life | Color - Actuator/Cap | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6 A 8 A | 24 V | 55 °C | -20 ░C | Standard | 22 mm | On-Mom | 125 V | Button Round | IP65 - Dust Tight Water Resistant | Panel Mount Front | SPDT | Solder Lug | ||||

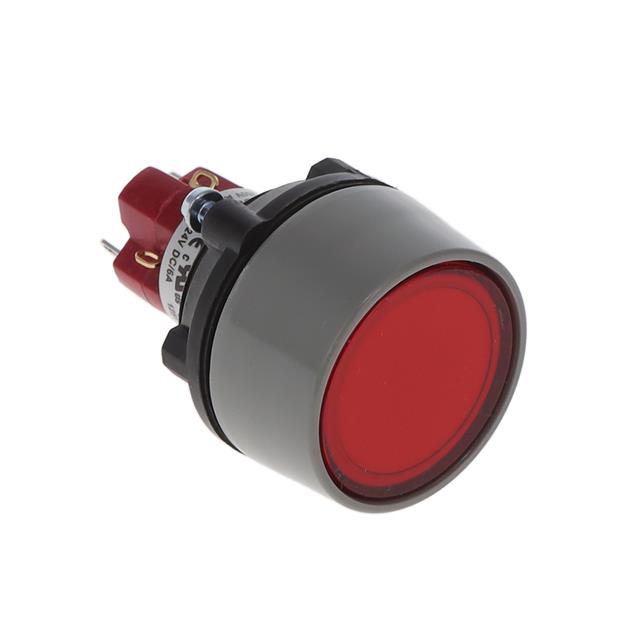

 E-Switch | 6 A 8 A | 24 V | 55 °C | -20 ░C | Standard | 22 mm | On-Mom | 125 V | Button Flush Round | IP65 - Dust Tight Water Resistant | Panel Mount Front | SPDT | Solder Lug | 100000 Cycles | 50000 Cycles | Red | No Marking |
 E-Switch | 6 A 8 A | 24 V | 55 °C | -20 ░C | Standard | 22 mm | On-Mom | 125 V | Button Flush Round | IP65 - Dust Tight Water Resistant | Panel Mount Front | SPDT | Solder Lug | 100000 Cycles | 50000 Cycles | Red | No Marking |
