178093 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

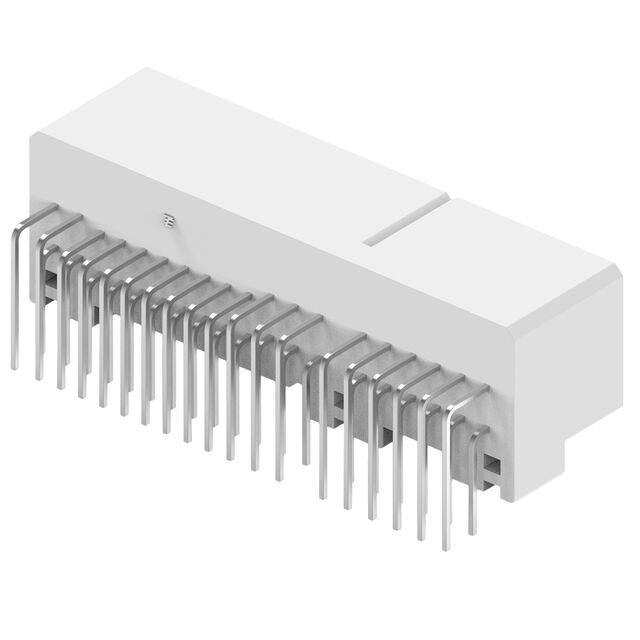

040/070 HYBRID CAP ASSY 38P ROHS COMPLIANT: YES
| Part | Contact Length - Mating | Contact Length - Mating | Number of Rows | Insulation Height [z] | Insulation Height [z] | Shrouding | Number of Positions Loaded | Termination | Contact Shape | Contact Length - Post | Contact Length - Post | Connector Type | Style | Mounting Type | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.28 in | 7.11 mm | 2 | 18.5 mm | 0.728 in | Shrouded - 4 Wall | All | Solder | Rectangular | 0.157 in | 4 mm | Header | Board to Cable/Wire | Through Hole Right Angle | Push-Pull | 0.205 in | 5.2 mm | Male Pin | 38 |
