140-509 Series
Manufacturer: EDAC Inc.
Beta
⌘K
PIN HEADER, WIRE-TO-BOARD, 2 MM, 1 ROWS, 9 CONTACTS, THROUGH HOLE STRAIGHT, 140 SERIES
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Insulation Color | Shrouding | Number of Rows | Number of Positions Loaded | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Style | Insulation Material | Insulation Height [z] | Insulation Height [z] | Contact Type | Fastening Type | Contact Finish - Post | Contact Material | Contact Shape | Connector Type | Mounting Type | Termination | Contact Length - Post [x] | Contact Length - Post | Note | Contact Termination | Pitch [x] | Pitch [x] | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

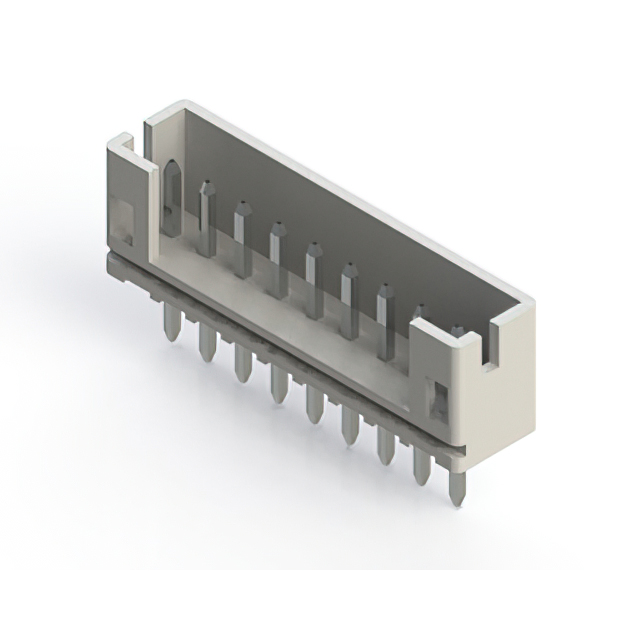

 EDAC Inc. | 100 VAC | -40 C | 105 ░C | 0.079 " | 2 mm | Natural | Shrouded - 4 Wall | 1 | All | 2 A | UL94 V-0 | 9 | Board to Cable/Wire | Nylon 6/6 Polyamide (PA66) | 6.1 mm | 0.24 in | Male Pin | Detent Lock | Tin | Brass | Square | Header | Through Hole | Solder | ||||||||

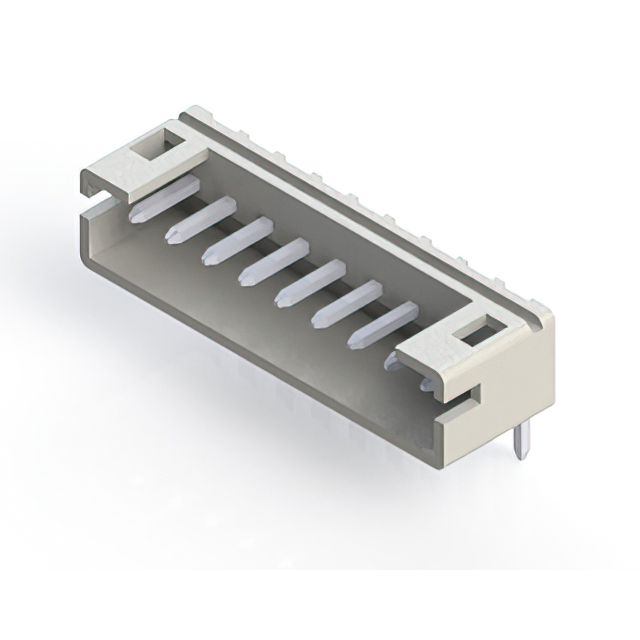

 EDAC Inc. | 100 VAC | -40 C | 105 ░C | 0.079 " | 2 mm | Natural | Shrouded - 4 Wall | 1 | All | 2 A | UL94 V-0 | 9 | Board to Cable/Wire | Nylon 6/6 Polyamide (PA66) | 4.7 mm | 0.185 in | Male Pin | Detent Lock | Tin | Brass | Square | Header | Right Angle Through Hole | Solder | 0.134 " | 3.4 mm | ||||||

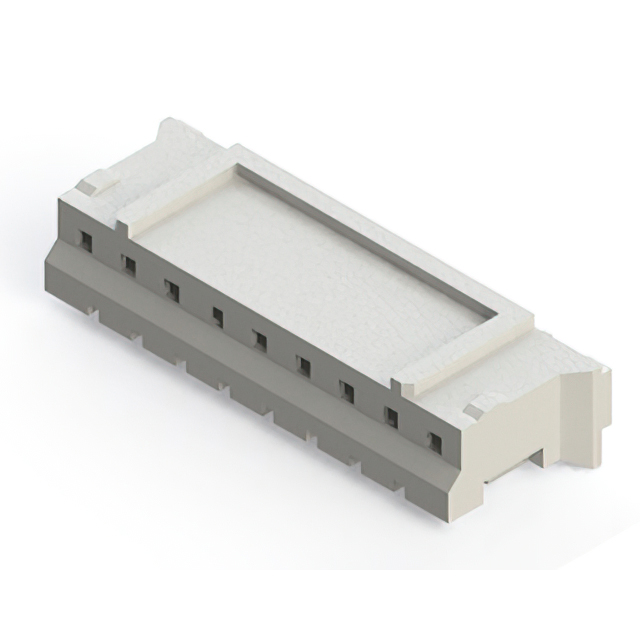

 EDAC Inc. | -25 °C | 85 °C | 1 | 9 | Nylon 6/6 Polyamide (PA66) | Female Socket | Detent Lock | Receptacle | Free Hanging (In-Line) | Contacts Not Included | Crimp | 0.079 in | 2 mm | Natural | Polarizing Key |
