77314 Series

Catalog

CONN HEADER VERT 6POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Number of Positions	Number of Positions Loaded [custom]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Termination	Number of Rows	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Shrouding	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Number of Positions	Overall Contact Length	Number of Positions Loaded	Contact Length - Mating [custom]	Contact Length - Mating [custom]

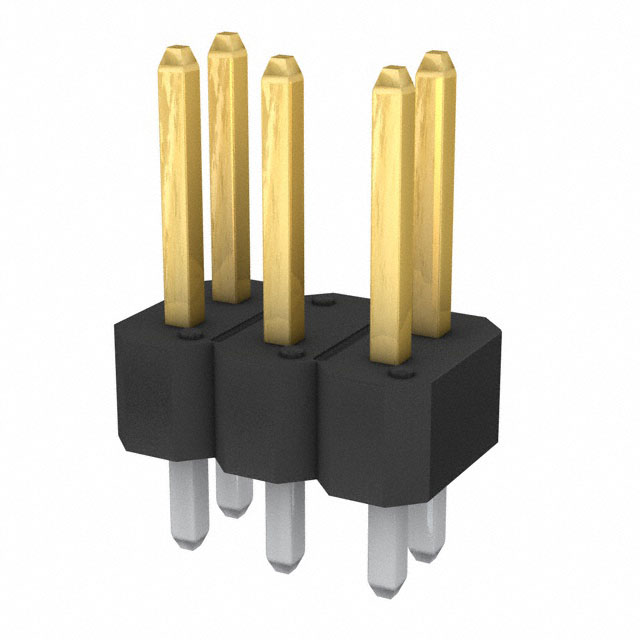

Amphenol ICC (FCI) 77314-125LF	-65 ░C	130 °C	Breakaway Header	Black	6	5	Push-Pull	0.225 in	5.72 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	30 Áin	0.76 Ám	Thermoplastic	Phosphor Bronze	Solder	2	Tin	2.54 mm	0.1 in	Gold GXT™	Male Pin	2 çm	78.7 çin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	3 A

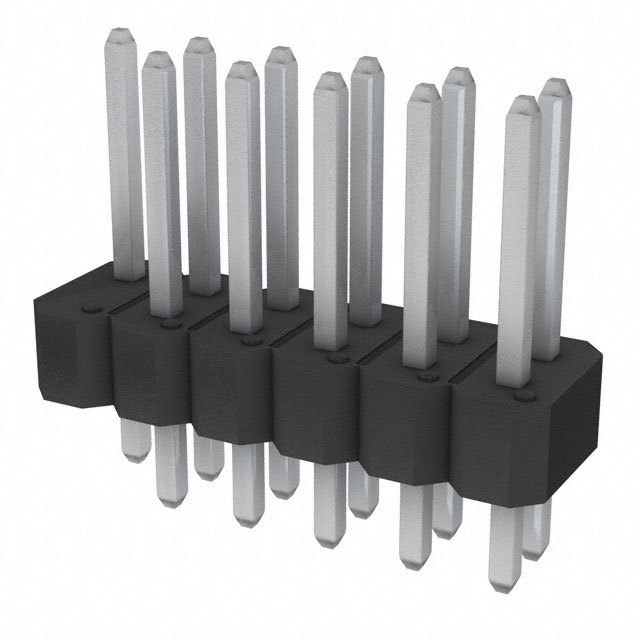

Amphenol ICC (FCI) 77314-4AHLF	-65 ░C	130 °C	Breakaway Header	Black	12		Push-Pull	0.266 in	6.75 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	78.7 µin	2 µm	Thermoplastic	Phosphor Bronze	Solder	2	Tin	2.9 mm	0.114 in		Male Pin	2 çm	78.7 çin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	3 A	0.48 in	12.19 mm	11

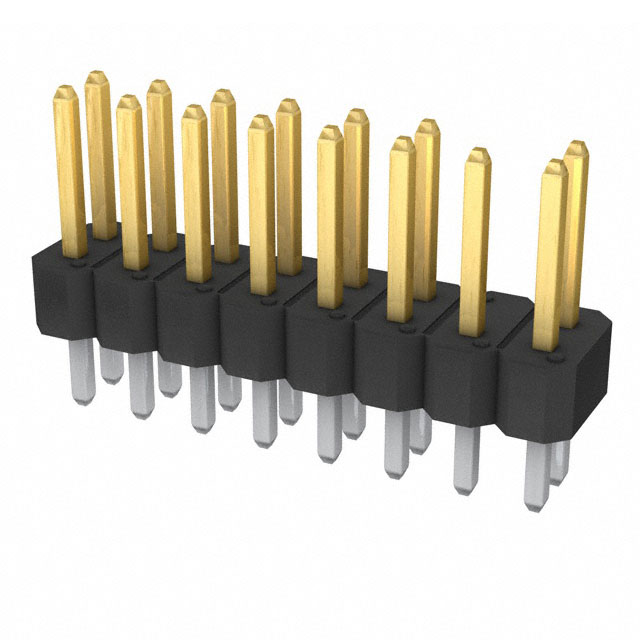

Amphenol ICC (FCI) 77314-194LF	-65 ░C	130 °C	Breakaway Header	Black			Push-Pull		5.84 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	30 Áin	0.76 Ám	Thermoplastic	Phosphor Bronze	Solder	2	Tin			Gold GXT™	Male Pin	2 çm	78.7 çin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	3 A	0.453 in	11.5 mm	15	0.12 in	3.05 mm	0.23 in	16

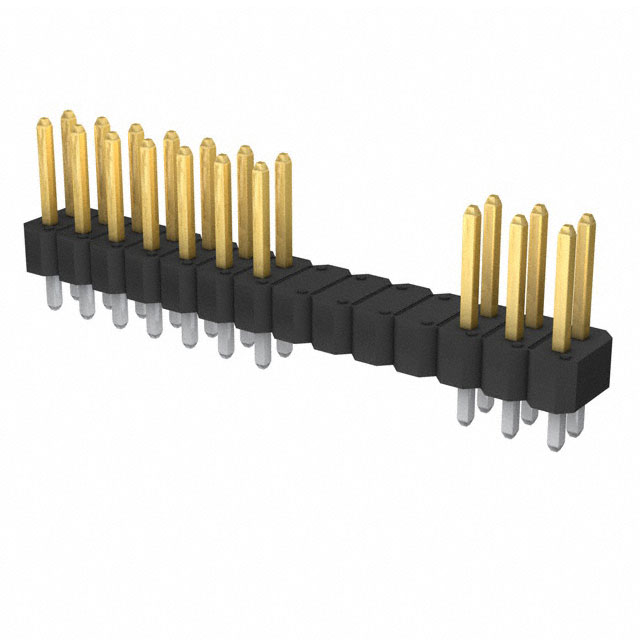

Amphenol ICC (FCI) 77314-8AFLF	-65 ░C	130 °C	Breakaway Header	Black	28		Push-Pull		5.84 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	15 µin	0.38 µm	Thermoplastic	Phosphor Bronze	Solder	2	Tin			Gold GXT™	Male Pin	2 çm	78.7 çin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	3 A			20	0.095 in	2.41 mm	0.23 in

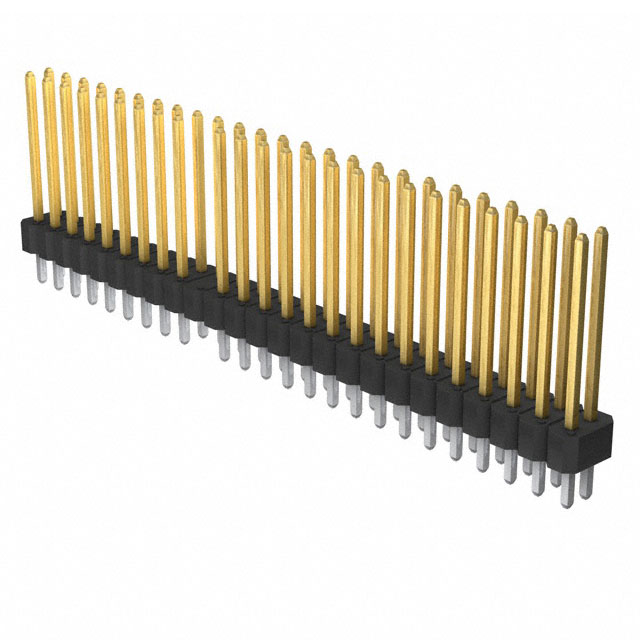

Amphenol ICC (FCI) 77314-153LF	-65 ░C	130 °C	Breakaway Header	Black	50		Push-Pull	0.505 in	12.83 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	30 Áin	0.76 Ám	Thermoplastic	Phosphor Bronze	Solder	2	Tin	3.02 mm	0.119 in	Gold GXT™	Male Pin	2 çm	78.7 çin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	3 A		18.4 mm						0.724 in	All

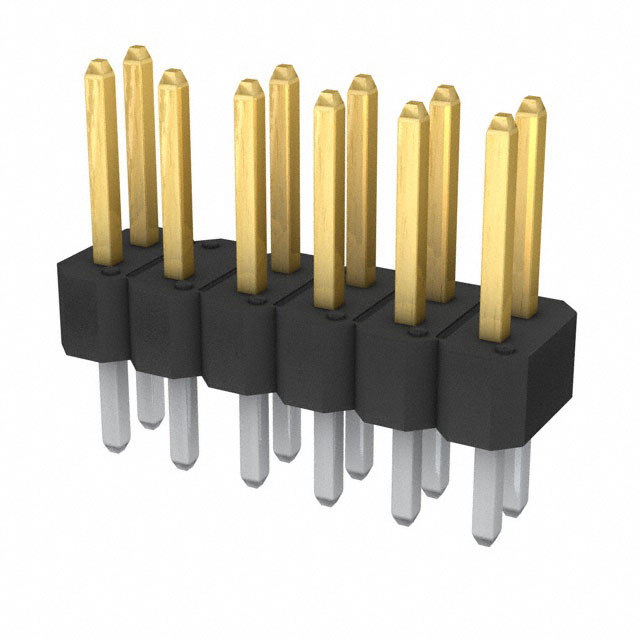

Amphenol ICC (FCI) 77314-856			Breakaway Header	Black	12		Push-Pull		5.84 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	15 µin	0.38 µm	Thermoplastic	Phosphor Bronze	Solder	2	Tin-Lead			Gold GXT™	Male Pin	4 Ám	157.5 Áin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded		0.465 in	11.81 mm	11	0.135 in	3.43 mm	0.23 in

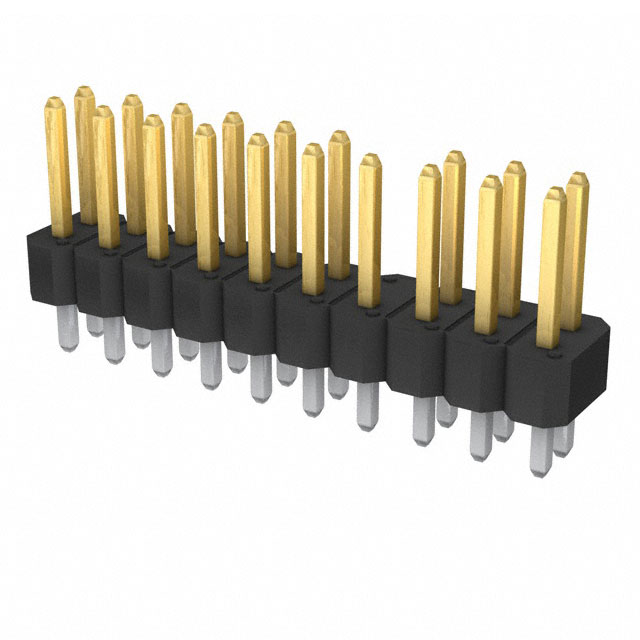

Amphenol ICC (FCI) 77314-118LF	-65 ░C	130 °C	Breakaway Header	Black	20		Push-Pull	0.225 in	5.72 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	30 Áin	0.76 Ám	Thermoplastic	Phosphor Bronze	Solder	2	Tin	2.54 mm	0.1 in	Gold GXT™	Male Pin	2 çm	78.7 çin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	3 A			19

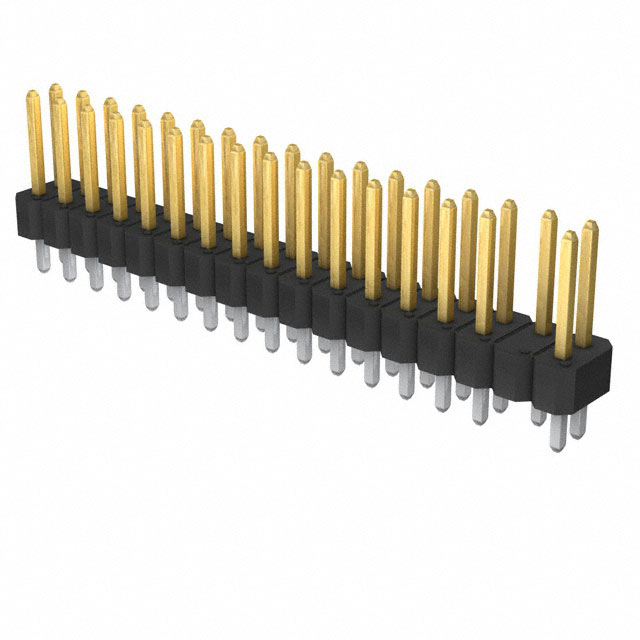

Amphenol ICC (FCI) 77314-190LF	-65 ░C	130 °C	Breakaway Header	Black	34		Push-Pull			0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	30 Áin	0.76 Ám	Thermoplastic	Phosphor Bronze	Solder	2	Tin	2.67 mm	0.105 in	Gold GXT™	Male Pin	2 çm	78.7 çin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	3 A	0.465 in	11.81 mm	33							6.6 mm	0.26 in

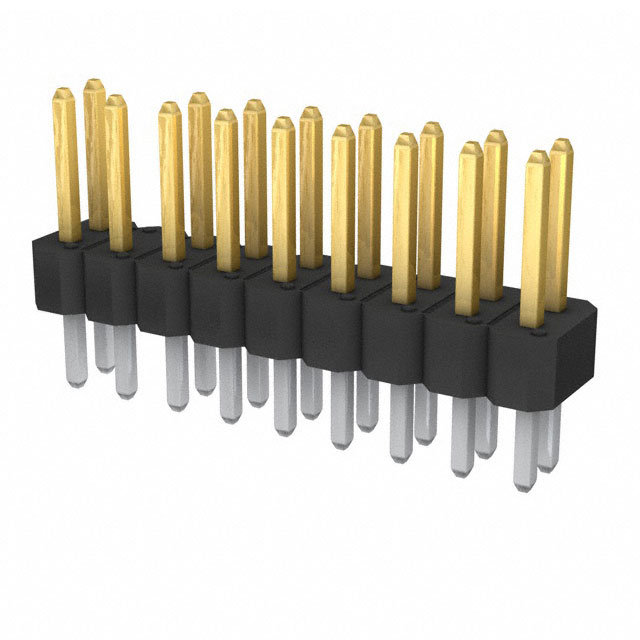

Amphenol ICC (FCI) 77314-858LF	-65 ░C	130 °C	Breakaway Header	Black	18		Push-Pull		5.84 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	15 µin	0.38 µm	Thermoplastic	Phosphor Bronze	Solder	2	Tin			Gold GXT™	Male Pin	2 çm	78.7 çin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	3 A	0.465 in	11.81 mm	17	0.135 in	3.43 mm	0.23 in

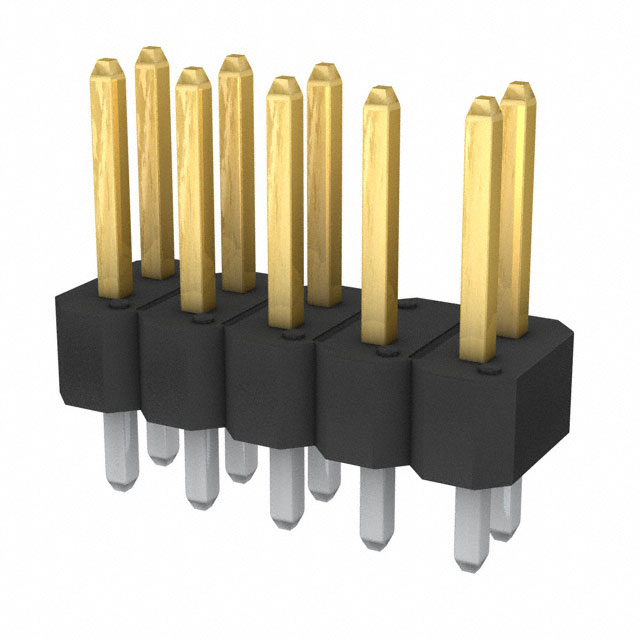

Amphenol ICC (FCI) 77314-127LF	-65 ░C	130 °C	Breakaway Header	Black	10		Push-Pull	0.225 in	5.72 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	Board to Board Cable	30 Áin	0.76 Ám	Thermoplastic	Phosphor Bronze	Solder	2	Tin	2.54 mm	0.1 in	Gold GXT™	Male Pin	2 çm	78.7 çin	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	3 A			9
