81CNQ Series

Catalog

DIODE MODULE SCHOTT 35V 80A PRM2

Part	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration	Technology	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If [Max]

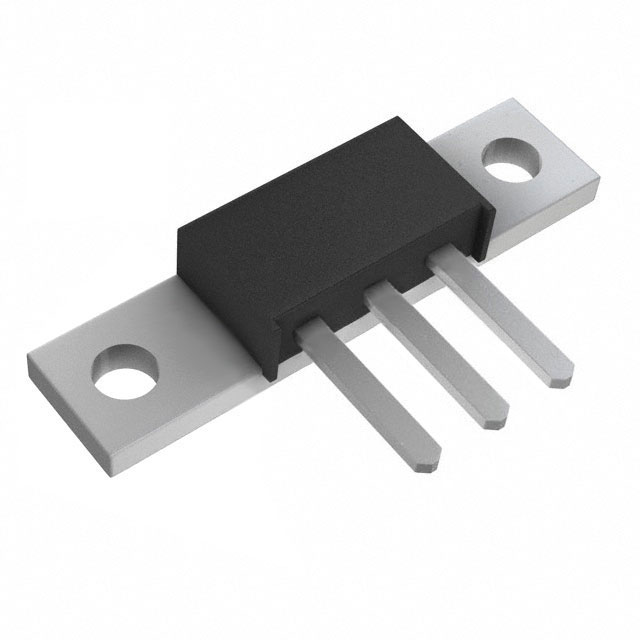

SMC Diode Solutions 81CNQ035S2	Chassis Mount	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2	35 V	200 mA 500 ns	5 mA	740 mV	80 A	PRM2

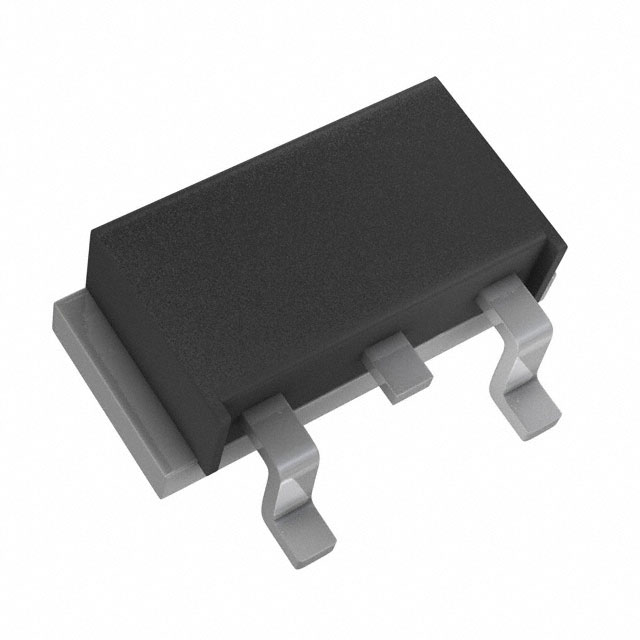

SMC Diode Solutions 81CNQ045SL	Surface Mount	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2-SL	45 V	200 mA 500 ns	5 mA	740 mV	80 A	PRM2-SL
SMC Diode Solutions 81CNQ040	Chassis Mount	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2	40 V	200 mA 500 ns	5 mA		40 A	PRM2	740 mV

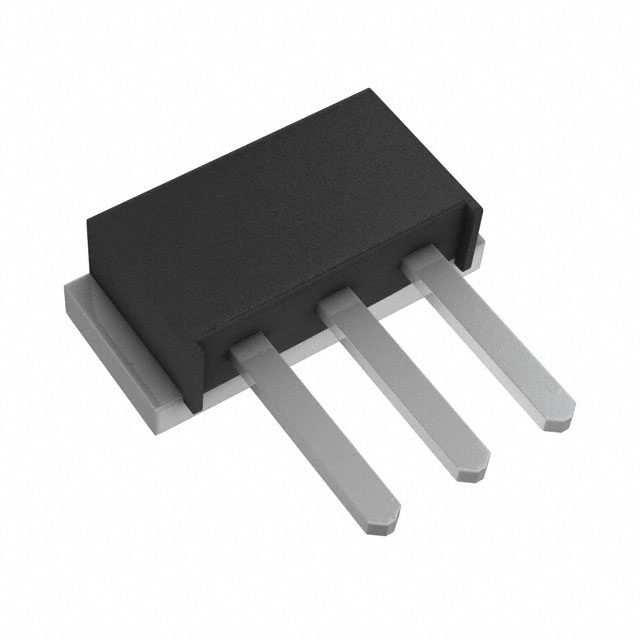

SMC Diode Solutions 81CNQ040SM	Through Hole	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2-SM	40 V	200 mA 500 ns	5 mA		40 A	PRM2-SM	740 mV
SMC Diode Solutions 81CNQ040SMS2	Through Hole	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2-SM	40 V	200 mA 500 ns	5 mA	740 mV	80 A	PRM2-SM
SMC Diode Solutions 81CNQ045S2	Chassis Mount	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2	45 V	200 mA 500 ns	5 mA	740 mV	80 A	PRM2
SMC Diode Solutions 81CNQ035SL	Surface Mount	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2-SL	35 V	200 mA 500 ns	5 mA		40 A	PRM2-SL	740 mV
SMC Diode Solutions 81CNQ035SM	Through Hole	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2-SM	35 V	200 mA 500 ns	5 mA		40 A	PRM2-SM	740 mV
SMC Diode Solutions 81CNQ035	Chassis Mount	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2	35 V	200 mA 500 ns	5 mA		40 A	PRM2	740 mV
SMC Diode Solutions 81CNQ040SL	Surface Mount	175 ░C	-55 °C	1 Pair Common Cathode	Schottky	PRM2-SL	40 V	200 mA 500 ns	5 mA		40 A	PRM2-SL	740 mV
