94HBB08 Series

Catalog

SWITCH ROTARY DIP OCTAL 0.1A 50V

Part	Body Material	Mechanical Life	Length	Length	Contact Finish	Actuator Level	Contact Material	Voltage Rating	Actuator Type	Circuit	Mounting Type	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Features	Current Rating (Amps)	Termination Style	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
Grayhill Inc. 94HBB08JT	Plastic	10000 Steps	0.39 "	9.91 mm	Gold	Raised	Copper Alloy	50 V	Rotary with Shaft	Octal	Surface Mount	2.54 mm	0.1 "	0.52 in	13.2 mm	Sealed	100 mA	J Lead	8	85 °C	-40 C
Grayhill Inc. 94HBB08WRT	Plastic	10000 Steps	0.39 "	9.91 mm	Gold	Raised	Copper Alloy	50 V	Rotary with Shaft	Octal	Surface Mount	2.54 mm	0.1 "	0.225 in	5.72 mm	Sealed	100 mA	Gull Wing	8	85 °C	-40 C

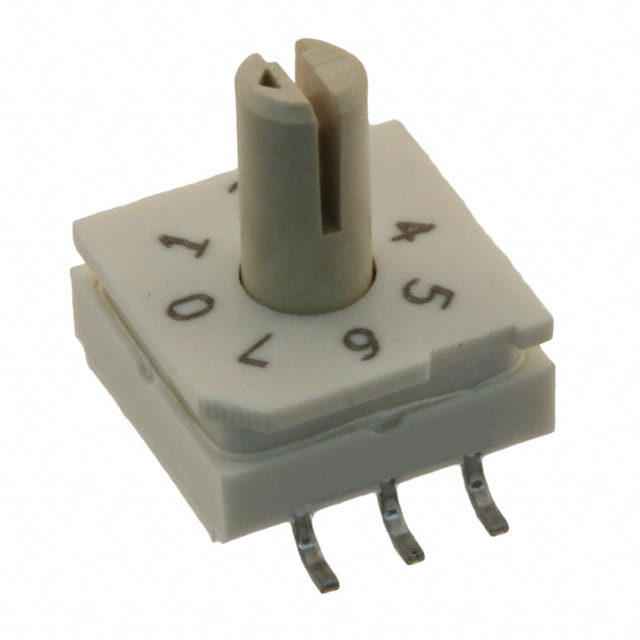

Grayhill Inc. 94HBB08WT	Plastic	10000 Steps	0.39 "	9.91 mm	Gold	Raised	Copper Alloy	50 V	Rotary with Shaft	Octal	Surface Mount	2.54 mm	0.1 "	0.225 in	5.72 mm	Sealed	100 mA	Gull Wing	8	85 °C	-40 C
