Power Brick Series

Heat Sinks maxiFLOW Power Brick Heat Sink, 1/4, Gold, T766, 37x58x22.9mm, 58mm dia.

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Heat Sinks maxiFLOW Power Brick Heat Sink, 1/4, Gold, T766, 37x58x22.9mm, 58mm dia.

Catalog

Heat Sinks maxiFLOW Power Brick Heat Sink, 1/4, Gold, T766, 37x58x22.9mm, 58mm dia.

Part	Package Cooled	Width	Width	Type	Fin Height	Fin Height	Attachment Method	Material	Material Finish	Length	Length	Thermal Resistance @ Forced Air Flow	Shape [custom]	Shape [custom]	Length [x]	Length [x]	Width [x]	Width [x]
Advanced Thermal Solutions Inc. ATS-1144-C1-R0	Half Brick DC/DC Converter	61 mm	2.401 in	Top Mount	0.449 in	11.4 mm	Bolt On	Aluminum	Gold Anodized	2.323 in	59 mm	3.9 °C/W	Rectangular	Angled Fins
Advanced Thermal Solutions Inc. ATS-1103-C1-R0	Half Brick DC/DC Converter	59 mm	2.323 in	Top Mount	0.24 in	6.1 mm	Bolt On	Aluminum	Gold Anodized			9.6 °C/W	Rectangular	Angled Fins	2.402 in	61 mm

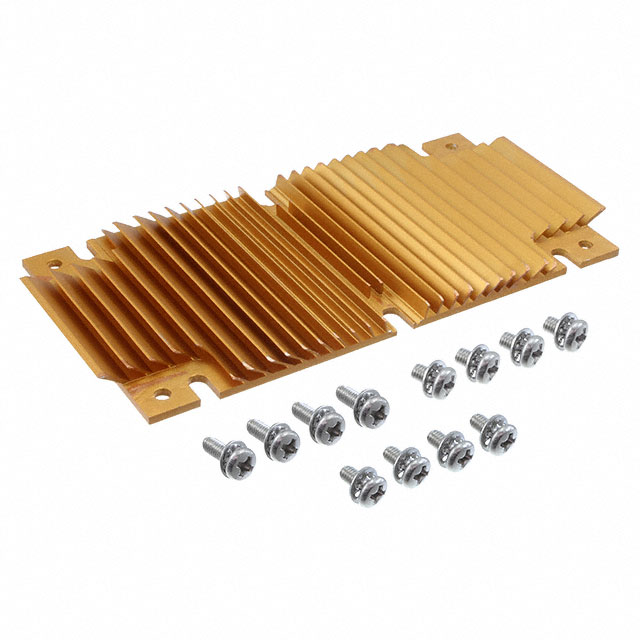

Advanced Thermal Solutions Inc. ATS-1148-C1-R0	Full Brick DC/DC Converter			Top Mount	0.24 in	6.1 mm	Bolt On	Aluminum	Gold Anodized			2.4 °C/W	Rectangular	Angled Fins	2.402 in	61 mm	4.646 "	118 mm

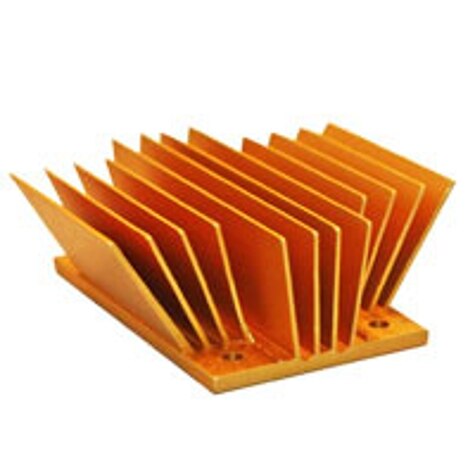

Advanced Thermal Solutions Inc. ATS-1101-C1-R0	Quarter Brick DC/DC Converter			Top Mount	0.902 "	22.9 mm	Bolt On	Aluminum	Gold Anodized			1.6 °C/W	Rectangular	Angled Fins	2.283 "	58 mm	1.457 in	37 mm
Advanced Thermal Solutions Inc. ATS-1186-C1-R0	Eighth Brick DC/DC Converter	59 mm	2.323 in	Top Mount	0.902 "	22.9 mm	Bolt On	Aluminum	Gold Anodized			3 °C/W	Rectangular	Angled Fins	0.9 in	23 mm

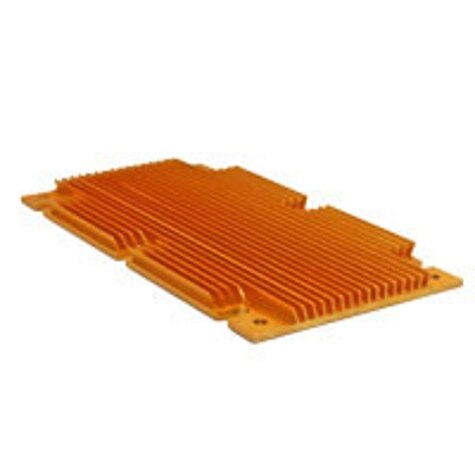

Advanced Thermal Solutions Inc. ATS-1108-C1-R0	Full Brick DC/DC Converter	61 mm	2.401 in	Top Mount	0.24 in	6.1 mm	Bolt On	Aluminum	Gold Anodized			9.4 °C/W	Rectangular	Angled Fins	4.598 in	116.8 mm
Advanced Thermal Solutions Inc. ATS-1138-C1-R0	Quarter Brick DC/DC Converter	59 mm	2.323 in	Top Mount	0.24 in	6.1 mm	Bolt On	Aluminum	Gold Anodized	1.457 in	37 mm	9.4 °C/W	Rectangular	Angled Fins
Advanced Thermal Solutions Inc. ATS-1099-C1-R0	Quarter Brick DC/DC Converter			Top Mount	0.449 in	11.4 mm	Bolt On	Aluminum	Gold Anodized			4.3 °C/W	Rectangular	Angled Fins	2.283 "	58 mm	1.457 in	37 mm

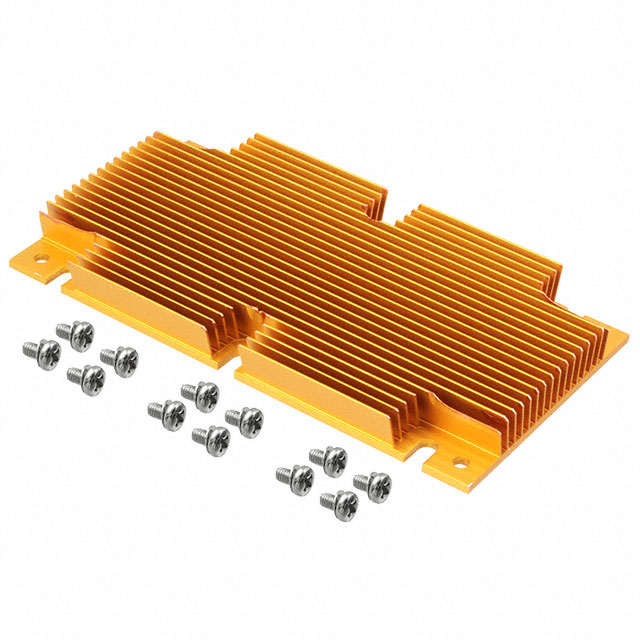

Advanced Thermal Solutions Inc. ATS-1109-C1-R0	Full Brick DC/DC Converter	61 mm	2.401 in	Top Mount	0.449 in	11.4 mm	Bolt On	Aluminum	Gold Anodized			5.2 °C/W	Rectangular	Angled Fins	4.598 in	116.8 mm

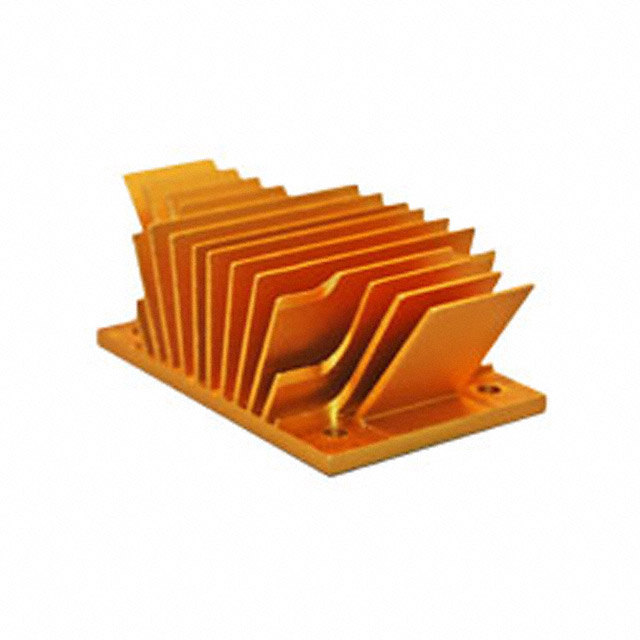

Advanced Thermal Solutions Inc. ATS-1141-C1-R0	Quarter Brick DC/DC Converter	59 mm	2.323 in	Top Mount	0.902 "	22.9 mm	Bolt On	Aluminum	Gold Anodized	1.457 in	37 mm	1.6 °C/W	Rectangular	Angled Fins
