171395 Series

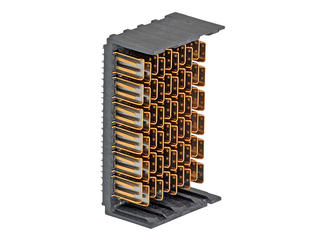

Impel 90 Ohm, 6 Pair Vertical Backplane Header, 1.90mm Pitch, Unguided, Open Endwalls, 12 Columns, 144 Circuits, Pin Length 4.90mm, Plated Through Hole Dimension 0.36mm

Manufacturer: Molex

Catalog

Impel 90 Ohm, 6 Pair Vertical Backplane Header, 1.90mm Pitch, Unguided, Open Endwalls, 12 Columns, 144 Circuits, Pin Length 4.90mm, Plated Through Hole Dimension 0.36mm

Part	Features	Connector Style	Voltage Rating	Number of Positions Loaded	Color	Current Rating (Amps)	Number of Rows	Connector Usage	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Number of Columns	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	Contact Layout, Typical	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded
Molex 1713951105	Shielded	Impel™	29.9 VAC/DC	All	Black	0.75 A	12	Backplane	Gold	0.075 in	1.9 mm	Through Hole	120	10	85 °C	-55 °C	Press-Fit	Header Male Pins and Blades

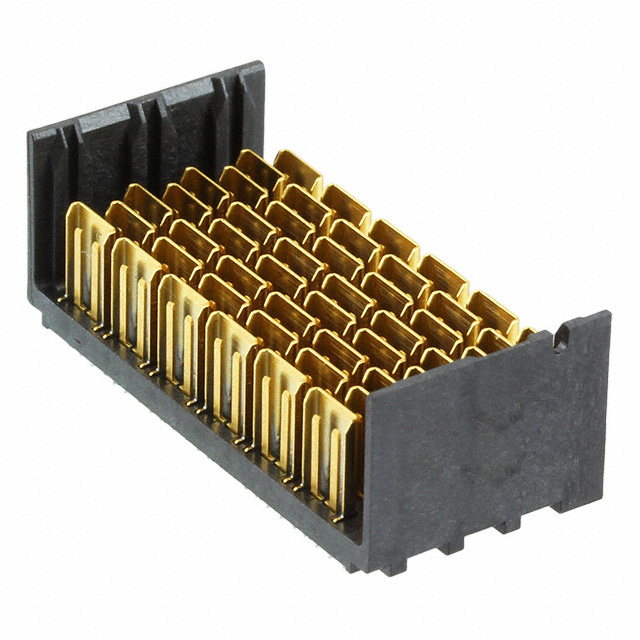

Molex 1713951807	Shielded	Impel™	150 VDC	All	Black			Backplane	Gold	0.075 in	1.9 mm	Through Hole		8	85 °C	-55 °C	Press-Fit	Header Male Pins and Blades	48 Differential Pairs	UL94 V-0	0.76 Ám	30 Áin
Molex 1713951208	Shielded	Impel™	29.9 VAC/DC	All	Black	0.75 A	12	Backplane	Gold	0.075 in	1.9 mm	Through Hole	144	12	85 °C	-55 °C	Press-Fit	Header Male Pins and Blades	72 Differential Pairs	UL94 V-0	0.76 Ám	30 Áin

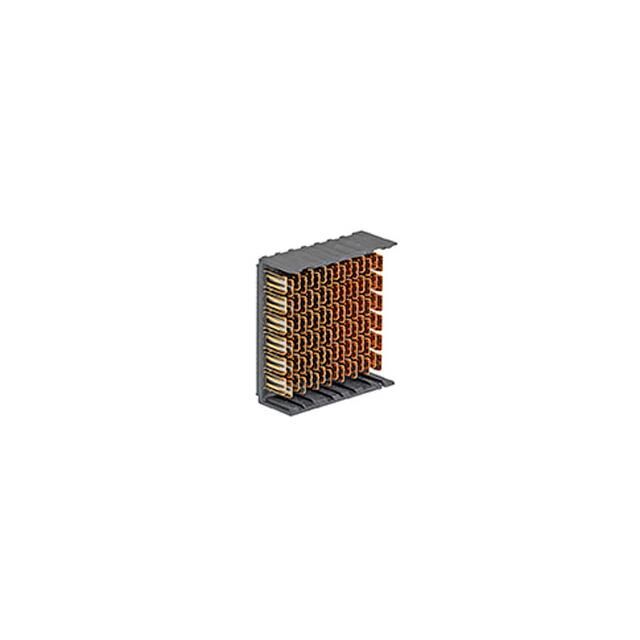

Molex 1713951607	Shielded	Impel™	150 VDC	All	Black			Backplane	Gold	0.075 in	1.9 mm	Through Hole		16	85 °C	-55 °C	Press-Fit	Header Male Pins and Blades	96 Differential Pairs	UL94 V-0	0.76 Ám	30 Áin
Molex 1713951608	Shielded	Impel™	29.9 VAC/DC	All	Black	75 mA	12	Backplane	Gold	0.075 in	1.9 mm	Through Hole	192	16	85 °C	-55 °C	Press-Fit	Header Male Pins and Blades	72 Differential Pairs	UL94 V-0	0.76 Ám	30 Áin	192

Catalog

Impel 90 Ohm, 6 Pair Vertical Backplane Header, 1.90mm Pitch, Unguided, Open Endwalls, 12 Columns, 144 Circuits, Pin Length 4.90mm, Plated Through Hole Dimension 0.36mm
