KSA0M9 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K

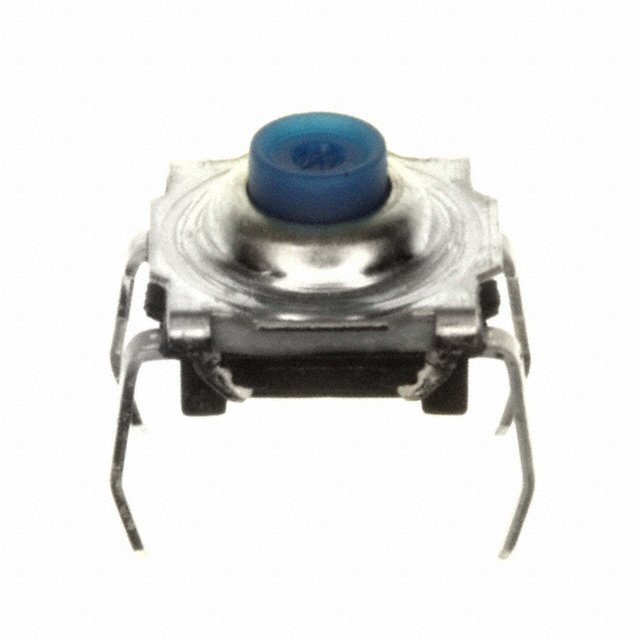

SWITCH TACTILE SPST-NO 0.05A 32V
| Part | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Mechanical Life | Circuit | Switch Function | Mounting Type | Outline [x] | Outline [y] | Illumination | Actuator Orientation | Contact Rating @ Voltage | Actuator Type | Switch Travel [custom] | Termination Style | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 300 gf | 90 °C | -40 °C | IP60 | 500000 Cycles | SPST-NO | Off-Mom | Through Hole | 7.4 mm | 7.4 mm | Non-Illuminated | Top Actuated | 0.05 A | Standard | 0.6 mm | PC Pin | 4.7 mm |
 Littelfuse/Commercial Vehicle Products | 300 gf | 125 °C | -40 °C | IP60 | 500000 Cycles | SPST-NO | Off-Mom | Through Hole | 7.4 mm | 7.4 mm | Non-Illuminated | Top Actuated | 0.01 A 32 VDC | Standard | 0.6 mm | PC Pin | 4.7 mm |
