628W13W Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB RCPT 13P PNL MNT SLDR

Part	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Dielectric Material	Contact Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Type	Flange Feature	Features	Connector Type	Ingress Protection	Shell Material, Finish	Termination	Current Rating (Amps)	Material Flammability Rating	Connector Style	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Contact Finish	Mounting Type	Flange Feature	Current Rating (Amps)

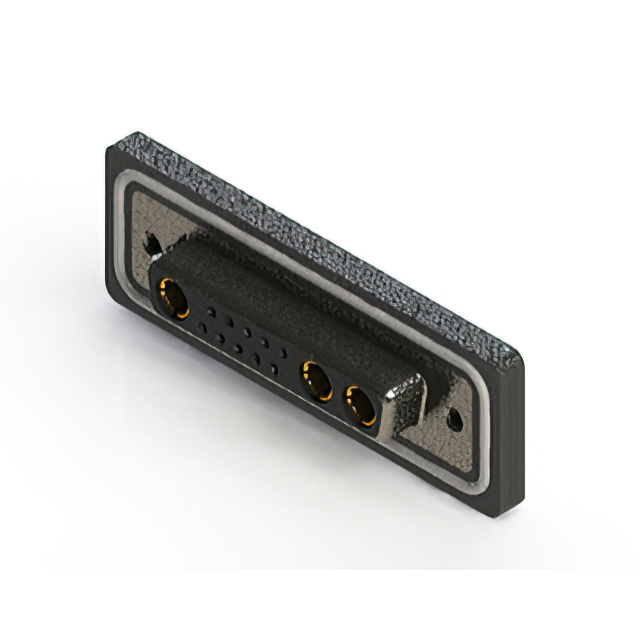

EDAC Inc. 628W13W3324-4NA	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Housing/Shell (M3)	Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Solder	5 A 40 A	UL94 V-0	Combo D-Sub	10	3	0.38 µm	15 µin	2	Gold	Panel Mount Through Hole
EDAC Inc. 628W13W3324-3N2	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Housing/Shell	Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Solder	5 A 30 A	UL94 V-0	Combo D-Sub	10	3	0.38 µm	15 µin	2	Gold	Panel Mount Through Hole	4-40
EDAC Inc. 628W13W3624-1N2	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Housing/Shell	Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Solder		UL94 V-0	Combo D-Sub	10	3	0.76 Ám	30 Áin	2	Gold	Panel Mount Through Hole	4-40	10A 5A
EDAC Inc. 628W13W3324-2NA	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Housing/Shell (M3)	Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Solder		UL94 V-0	Combo D-Sub	10	3	0.38 µm	15 µin	2	Gold	Panel Mount Through Hole		20A 5A
EDAC Inc. 628W13W3324-1ND	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Board Side (M3)	Board Lock Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Solder		UL94 V-0	Combo D-Sub	10	3	0.38 µm	15 µin	2	Gold	Panel Mount Through Hole		10A 5A
EDAC Inc. 628W13W3624-2NA	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Housing/Shell (M3)	Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Solder		UL94 V-0	Combo D-Sub	10	3	0.76 Ám	30 Áin	2	Gold	Panel Mount Through Hole		20A 5A

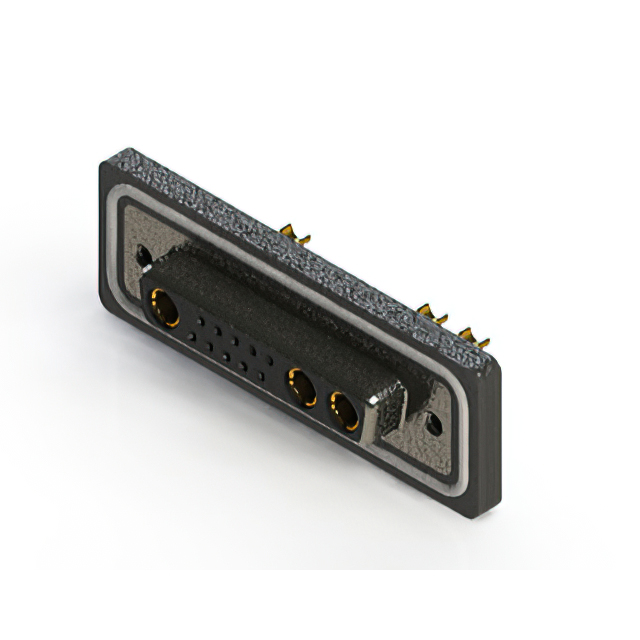

EDAC Inc. 628W13W3622-2N2	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Housing/Shell	Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel			UL94 V-0	Combo D-Sub	10	3	0.76 Ám	30 Áin	2	Gold	Panel Mount Through Hole	4-40	20A 5A
EDAC Inc. 628W13W3624-2N5	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Board Side (4-40)	Board Lock Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Solder		UL94 V-0	Combo D-Sub	10	3	0.76 Ám	30 Áin	2	Gold	Panel Mount Through Hole		20A 5A
EDAC Inc. 628W13W3322-3N2	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Housing/Shell	Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel		5 A 30 A	UL94 V-0	Combo D-Sub	10	3	0.38 µm	15 µin	2	Gold	Panel Mount Through Hole	4-40
EDAC Inc. 628W13W3122-3NA	125 VDC	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3	13C3 13W3	Signal and Power	Housing/Shell (M3)	Shielded	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel Plated Steel		5 A 30 A	UL94 V-0	Combo D-Sub	10	3	0.127 µm	5 µin	2	Gold	Panel Mount Through Hole
