88106 Series
Manufacturer: Belden Inc.
Beta
⌘K

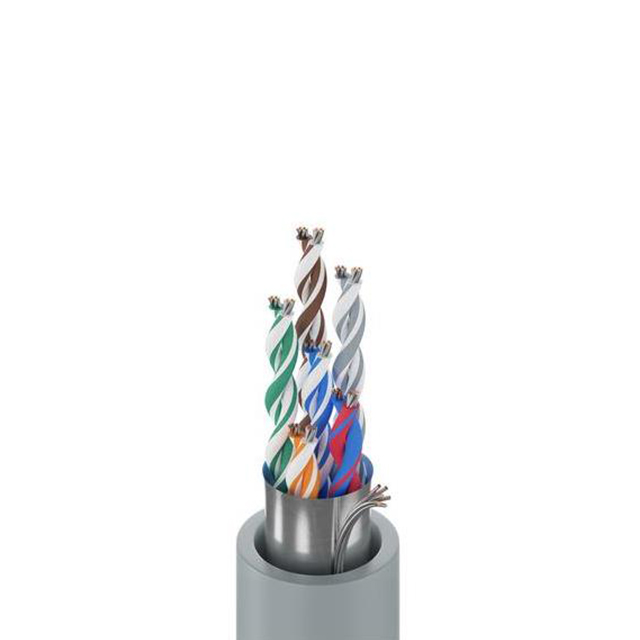

MULTI-PAIR 12CON 24AWG GRAY
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Ratings | Jacket (Insulation) Material | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Length | Length | Conductor Insulation | Voltage | Cable Type | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 0.293 in | 7.44 mm | Gray | 24 AWG | 0.014 in | 0.356 mm | Copper Tinned | UL Style CMP | Plenum Polyvinylidene Fluoride (PVDF) | Computer | 150 °C | -20 ░C | Drain Wire | 7 | 32 AWG | 12 | 152.4 m | 500 ft | Foam Fluorinated Ethylene-Propylene (FFEP) | 300 VDC | Multi-Pair | Foil |
Belden Inc. | Aluminum | 100 % | 0.293 in | 7.44 mm | Gray | 24 AWG | 0.014 in | 0.356 mm | Copper Tinned | UL Style CMP | Plenum Polyvinylidene Fluoride (PVDF) | Computer | 150 °C | -20 ░C | Drain Wire | 7 | 32 AWG | 12 | 304.8 m | 1000 ft | Foam Fluorinated Ethylene-Propylene (FFEP) | 300 VDC | Multi-Pair | Foil |
