FR01KR10 Series

Catalog

SWITCH DIP N.O./N.C. SP10T 10 SHAFT 0.1A 5VDC PC PINS 1000CYCLES THRU-HOLE TUBE

Part	Length [x]	Length [x]	Body Material	Electrical Life	Mechanical Life	Number of Positions	Termination Style	Height Above Board [z]	Height Above Board [z]	Actuator Level	Circuit	Pitch	Pitch	Actuator Type	Mounting Type	Contact Material	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating

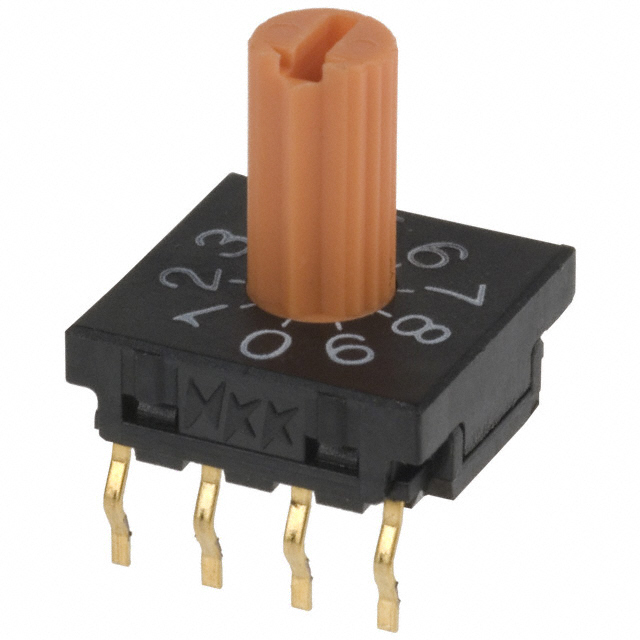

NKK Switches FR01KR10P-S	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.426 in	10.82 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V
NKK Switches FR01KR10H-06XL-W	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.394 in	10 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Right Angle Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V
NKK Switches FR01KR10P	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.426 in	10.82 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V

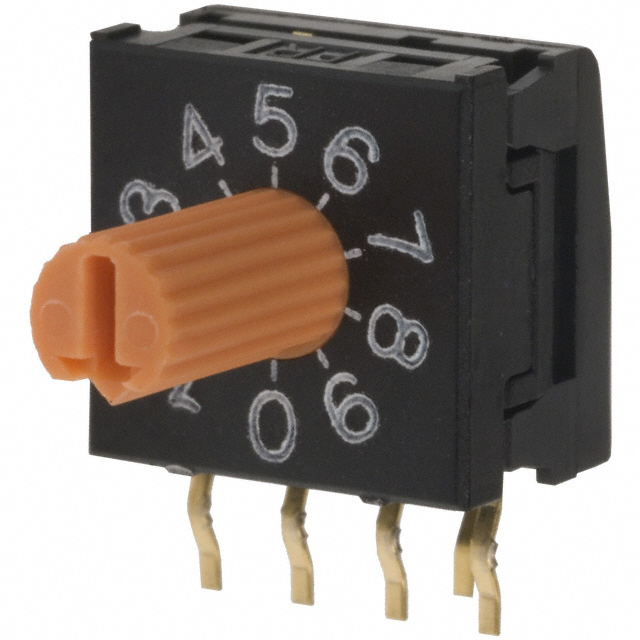

NKK Switches FR01KR10H-S	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.394 in	10 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Right Angle Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V

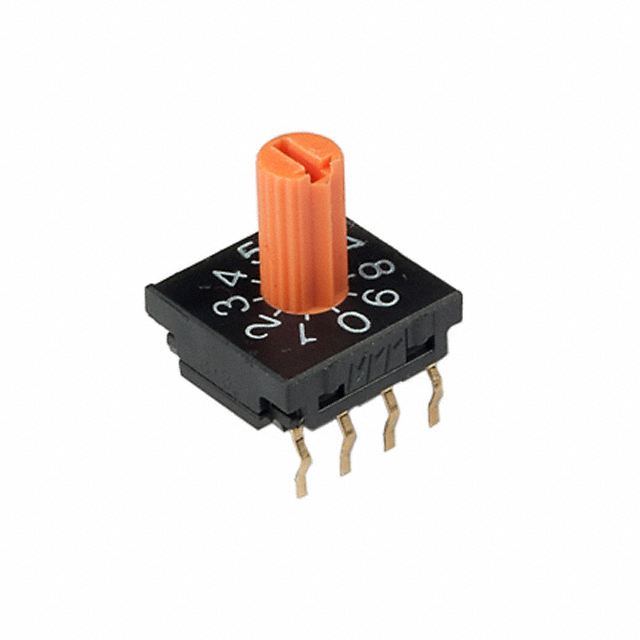

NKK Switches FR01KR10P-W-S	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.426 in	10.82 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V

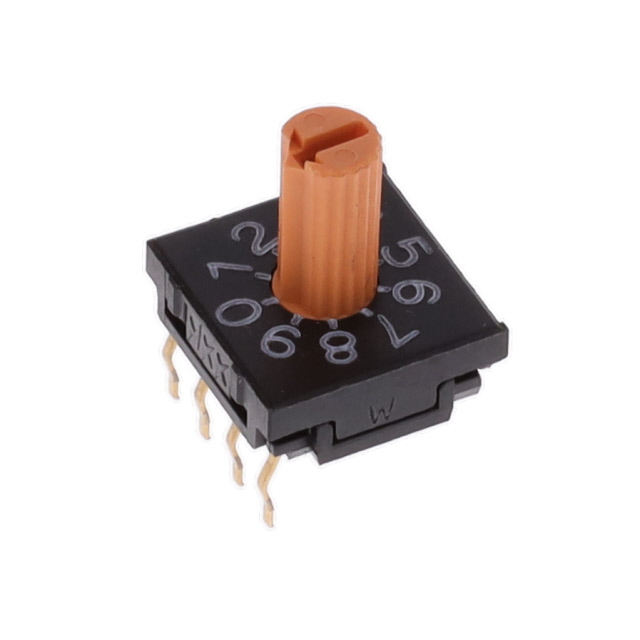

NKK Switches FR01KR10P-W	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.426 in	10.82 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V
NKK Switches FR01KR10H-W	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.394 in	10 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Right Angle Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V

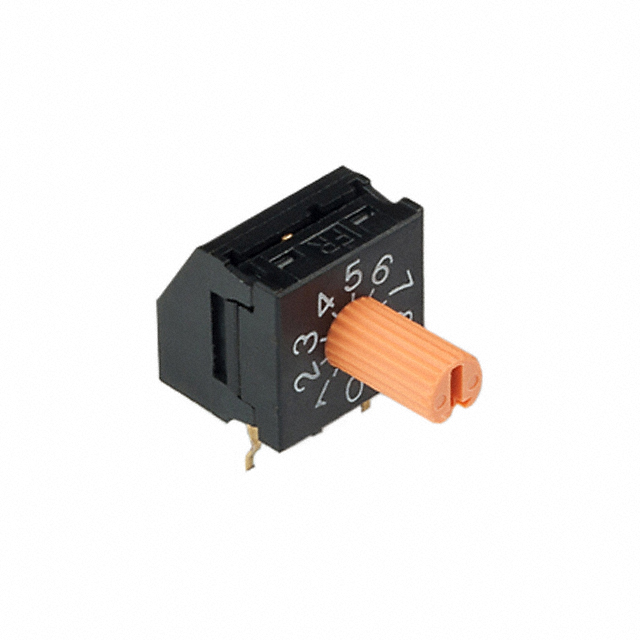

NKK Switches FR01KR10H-06XL-S	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.394 in	10 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Right Angle Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V
NKK Switches FR01KR10H	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.394 in	10 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Right Angle Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V

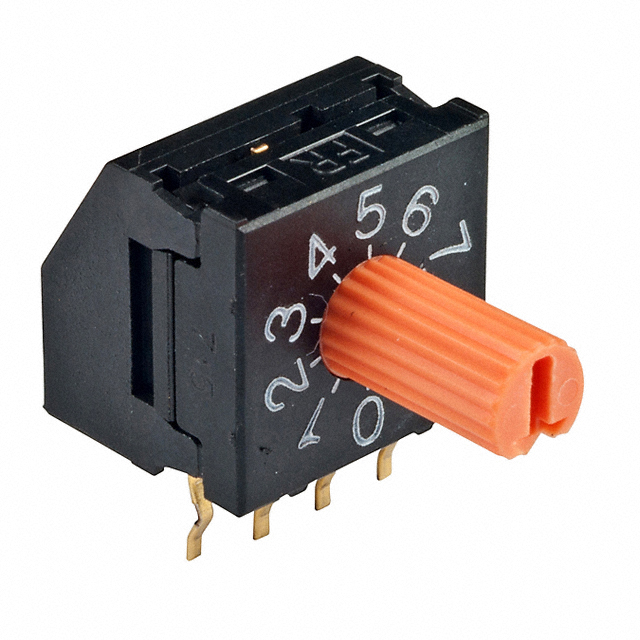

NKK Switches FR01KR10H-06XL	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	10000 Cycles	10000 Steps	10	PC Pin	0.394 in	10 mm	Raised	BCD	2.54 mm	0.1 "	Rotary with Shaft	Right Angle Through Hole	Copper Alloy	Gold	85 °C	-25 °C	100 mA	5 V
