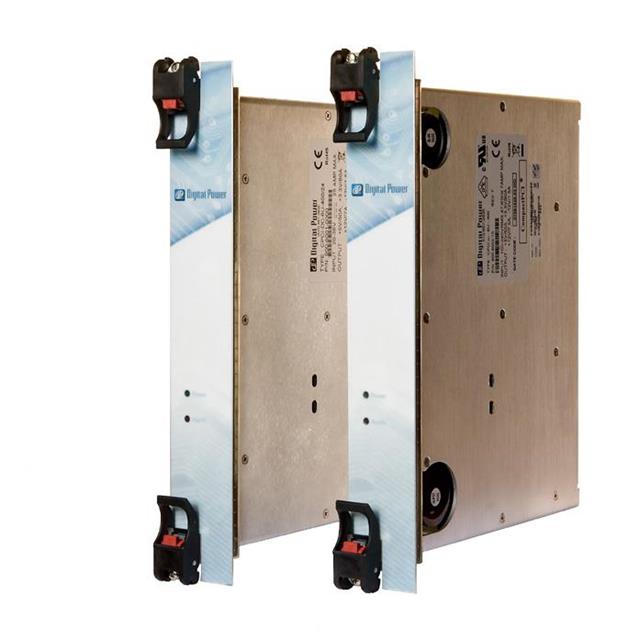

CPCI-AC Series

Catalog

CPCI AC/DC CNVRTR 5V 3.3V +/-12V

Part	Applications	Current - Output 4	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Current - Output 1	Current - Output 3	Voltage - Output 4	Standard Number	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Mounting Type	Current - Output 2	Approval Agency	Voltage - Output 2	Power (Watts)	Voltage - Output 3	Voltage - Input [Max]	Voltage - Input [Min]
Digital Power Corporation CPCI-AC-3U-300R	ITE (Commercial)	1 A	3.94 in	6.67 "	100 mm	169.4 mm	1.6 "	40.6 mm	4	30 A	5 A	-12 V	60950-1	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	-5 °C	70 °C	5 V	Compact PCI®	40 A	CE cURus	3.3 V	354 W	12 V
Digital Power Corporation CPCI-AC-6U-600	ITE (Commercial)	1.5 A			6.68 " 169.6 mm	10.31 " 261.9 mm		1.59 " 40.3 mm	4	70 A	7 A	-12 V	60950-1	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	-5 °C	70 °C	5 V	Compact PCI®	70 A	CE cURus	3.3 V	683 W	12 V	264 VAC	90 VAC
Digital Power Corporation CPCI-AC-6U-650R	ITE (Commercial)	1.5 A			6.68 " 169.6 mm	10.31 " 261.9 mm		1.59 " 40.3 mm	4		7 A	-12 V	60950-1	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	-5 °C	70 °C	5 V	Compact PCI®	70 A	CE cURus	3.3 V	733 W	12 V	264 VAC	90 VAC
Digital Power Corporation CPCI-AC-6U-600R	ITE (Commercial)	1.5 A			6.68 " 169.6 mm	10.31 " 261.9 mm		1.59 " 40.3 mm	4	70 A	7 A	-12 V	60950-1	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	-5 °C	70 °C	5 V	Compact PCI®	70 A	CE cURus	3.3 V	683 W	12 V	264 VAC	90 VAC
