917-47 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN SOCKET TRANSIST TO-5 10POS
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Contact Material - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Housing Material | Termination | Contact Finish Thickness - Mating | Type | Mounting Type | Contact Material - Mating | Number of Positions or Pins (Grid) | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

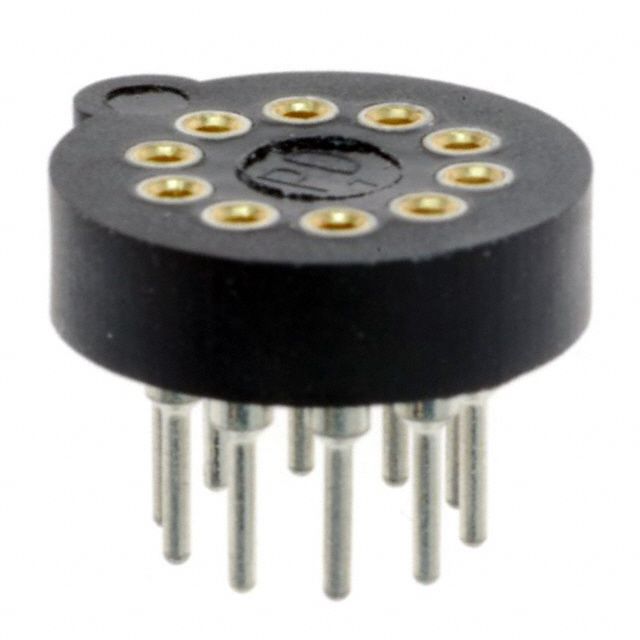

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Brass Alloy | 200 µin | 5.08 µm | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | Flash | Transistor TO-100 | Through Hole | Beryllium Copper | 10 | -55 C | 125 °C | Closed Frame | Tin |

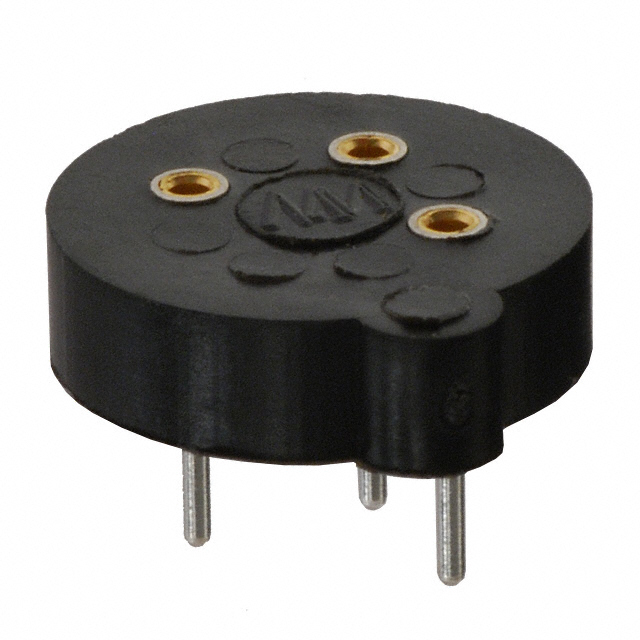

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Brass Alloy | 200 µin | 5.08 µm | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | Flash | Transistor TO-5 | Through Hole | Beryllium Copper | 3 | -55 C | 125 °C | Closed Frame | Tin |
