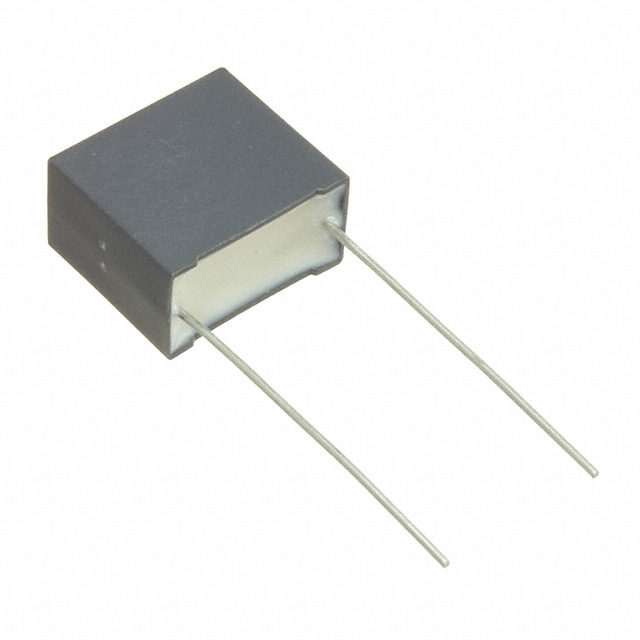

R75GI Series

Manufacturer: KEMET

Catalog

CAP FILM 0.22UF 5% 160VDC RADIAL

Part	Capacitance	Termination	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Dielectric Material	Package / Case	Applications	Lead Spacing	Lead Spacing	Voltage Rating - AC	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]
KEMET R75GI32204000J	0.22 µF	PC Pins	160 V	0.709 in	5 mm	18 mm	0.197 "	Through Hole	Polypropylene (PP) Metallized	Radial	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	90 V	5 %	11.1 mm	0.437 in	-55 C	105 ░C	AEC-Q200
KEMET R75GI41004000J	1 µF	PC Pins	160 V	0.709 in		18 mm	0.394 in	Through Hole	Polypropylene (PP) Metallized	Radial	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	90 V	5 %			-55 C	105 ░C	AEC-Q200	10 mm	16.1 mm	0.634 "
KEMET R75GI368050H0J	0.68 µF	PC Pins	160 V	0.709 in		18 mm	0.335 in	Through Hole	Polypropylene (PP) Metallized	Radial	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	90 V	5 %	14.6 mm		-55 C	125 °C	AEC-Q200	8.5 mm		0.575 in	7 mOhms
KEMET R75GI333050H0J	0.33 µF	PC Pins	160 V	0.709 in		18 mm	0.236 "	Through Hole	Polypropylene (PP) Metallized	Radial	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	90 V	5 %		0.476 "	-55 C	125 °C	AEC-Q200	6 mm	12.1 mm		14.5 mOhms
KEMET R75GI34704000J	0.47 µF	PC Pins	160 V	0.709 in		18 mm	0.295 in	Through Hole	Polypropylene (PP) Metallized	Radial	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	90 V	5 %			-55 C	105 ░C	AEC-Q200	7.5 mm
KEMET R75GI410050H0J	1 µF	PC Pins	160 V	0.709 in		18 mm	0.394 in	Through Hole	Polypropylene (PP) Metallized	Radial	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	90 V	5 %			-55 C	125 °C	AEC-Q200	10 mm	16.1 mm	0.634 "	4.8 mOhms
KEMET R75GI4100AA00K	1 µF	PC Pins	160 V	0.709 in		18 mm	0.394 in	Through Hole	Polypropylene (PP) Metallized	Radial	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	90 V	10 %			-55 C	105 ░C	AEC-Q200	10 mm		0.63 in		16 mm
