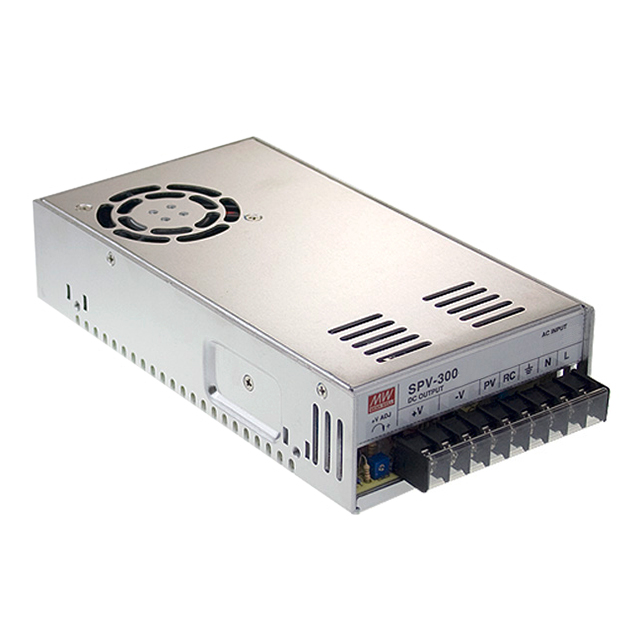

SPV-300 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 48V 300W
| Part | Minimum Load Required | Power (Watts) | Type | Current - Output 1 | Approval Agency | Mounting Type | Number of Outputs | Voltage - Isolation | Efficiency | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 300 W | Enclosed | 6.25 A | CB CE cURus TUV | Chassis Mount | 1 | 3000 V | 86.5 % | ITE (Commercial) | 264 VAC 370 VDC | 88 VAC 124 VDC | -20 °C | 65 °C | 48 V | 215 mm | 8.46 in | 50 mm | 4.53 in | 115 mm | 1.97 " | Adjustable Output PFC Remote On/Off Universal Input | |
MEAN WELL USA Inc. | 300 W | Enclosed | 12.5 A | CB CE cURus TUV | Chassis Mount | 1 | 3000 V | 85 % | ITE (Commercial) | 264 VAC 370 VDC | 88 VAC 124 VDC | -20 °C | 65 °C | 24 V | 215 mm | 8.46 in | 50 mm | 4.53 in | 115 mm | 1.97 " | Adjustable Output PFC Remote On/Off Universal Input |
