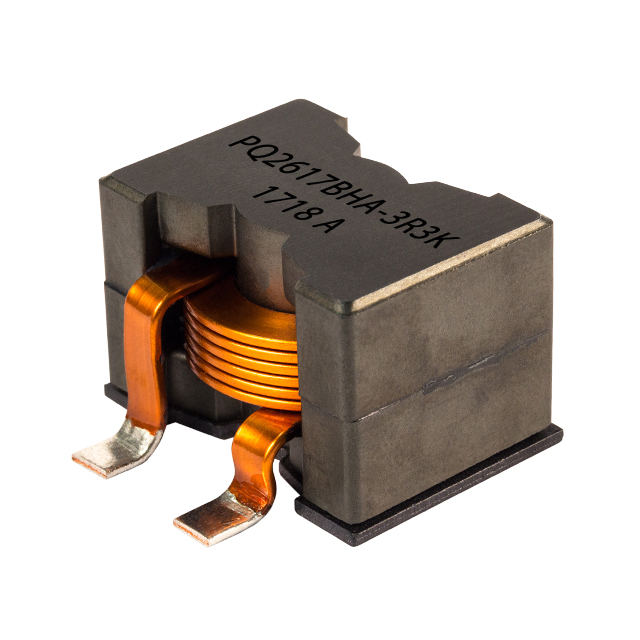

PQ2617BHA Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 22UH 28A 2.5 MOHM SMD
| Part | Inductance Frequency - Test | Package / Case | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Shielding | DC Resistance (DCR) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Type | Material - Core | Frequency - Self Resonant | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ratings | Current - Saturation (Isat) | Inductance | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 kHz | Nonstandard | 10 % | 1.098 " | 0.78 in | 27.9 mm | 19.8 mm | Shielded | 2.5 mOhm | -40 C | 155 C | Surface Mount | Drum Core Wirewound | Ferrite | 15 MHz | 0.748 in | 19 mm | AEC-Q200 | 14 A | 22 µH | 28 A |
Bourns Inc. | 100 kHz | Nonstandard | 10 % | 1.098 " | 0.78 in | 27.9 mm | 19.8 mm | Shielded | 2.5 mOhm | -40 C | 155 C | Surface Mount | Drum Core Wirewound | Ferrite | 40 MHz | 0.748 in | 19 mm | AEC-Q200 | 92.5 A | 3.3 µH | 28 A |
