P5040 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
QORIQ, 64-BIT POWER ARCH SOC, 4 X 2.2GHZ, DDR3/3L W/ECC, PCIE, 1/10GBE, SATA, -40 TO 90C, REV 2.1/ TRAY ROHS COMPLIANT: YES
| Part | Package / Case | Additional Interfaces | Voltage - I/O (Option 2) | Voltage - I/O (Option 1) | Graphics Acceleration | SATA Speed | SATA Interface | SATA Port Count | USB 2.0 PHY Count | USB | Package Width | Package Name | Package Length | Operating Temperature (Max) | Operating Temperature (Min) | Core Processor | Ethernet Speed Options | Ethernet Ports (1Gbps) | Speed | Mounting Type | Number of Cores | Bus Width | RAM Controllers |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

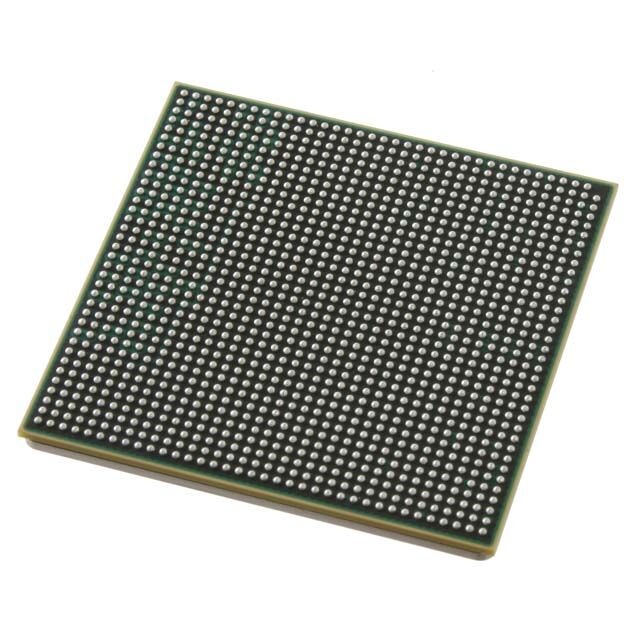

 NXP USA Inc. | 1295-BBGA FCBGA | I2C MMC PCIe SD SPI UART | 1.2 V | 1 V | No | 3 Gbps | SATA | 2 | 2 count | USB 2.0 + PHY | 37.5 mm | 1295-FCPBGA | 37.5 mm | 105 °C | -40 °C | PowerPC e5500 | 10Gbps 1Gbps | 10 | 2.2 GHz | Surface Mount | 4 Core | 64 Bit | DDR3 DDR3L |
