VLDY1235 Series

Catalog

LED YELLOW CLEAR 2SMD BOTTOM ENT

Part	Mounting Type	Lens Style	Millicandela Rating	Lens Color	Supplier Device Package	Lens Size [diameter]	Wavelength - Dominant	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Color	Current - Test	Package / Case	Configuration	Viewing Angle	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]

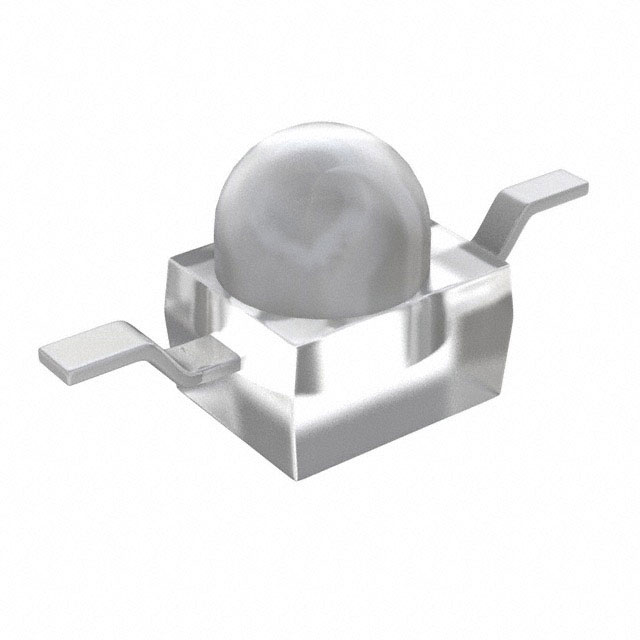

Vishay Semiconductor Opto Division VLDY1235R	Surface Mount Bottom Entry	Round with Domed Top	18000 mcd	Colorless	2-SMD	1.8 mm Dia	589 nm	2.97 mm	2.3 V	591 nm	Yellow	50 mA	2-SMD Z-Bend	Standard	11 °	Clear	2.3 mm	2.3 mm
Vishay Semiconductor Opto Division VLDY1235G	Surface Mount	Round with Domed Top	18000 mcd	Colorless	2-SMD	1.8 mm Dia	589 nm	2.97 mm	2.3 V	591 nm	Yellow	50 mA	2-SMD Gull Wing	Standard	11 °	Clear	2.3 mm	2.3 mm
